Sol-Ark + Pytes UL9540 Certified Customizable ESS Solution
Log in to check member price and detailed stock information.
Product Summary

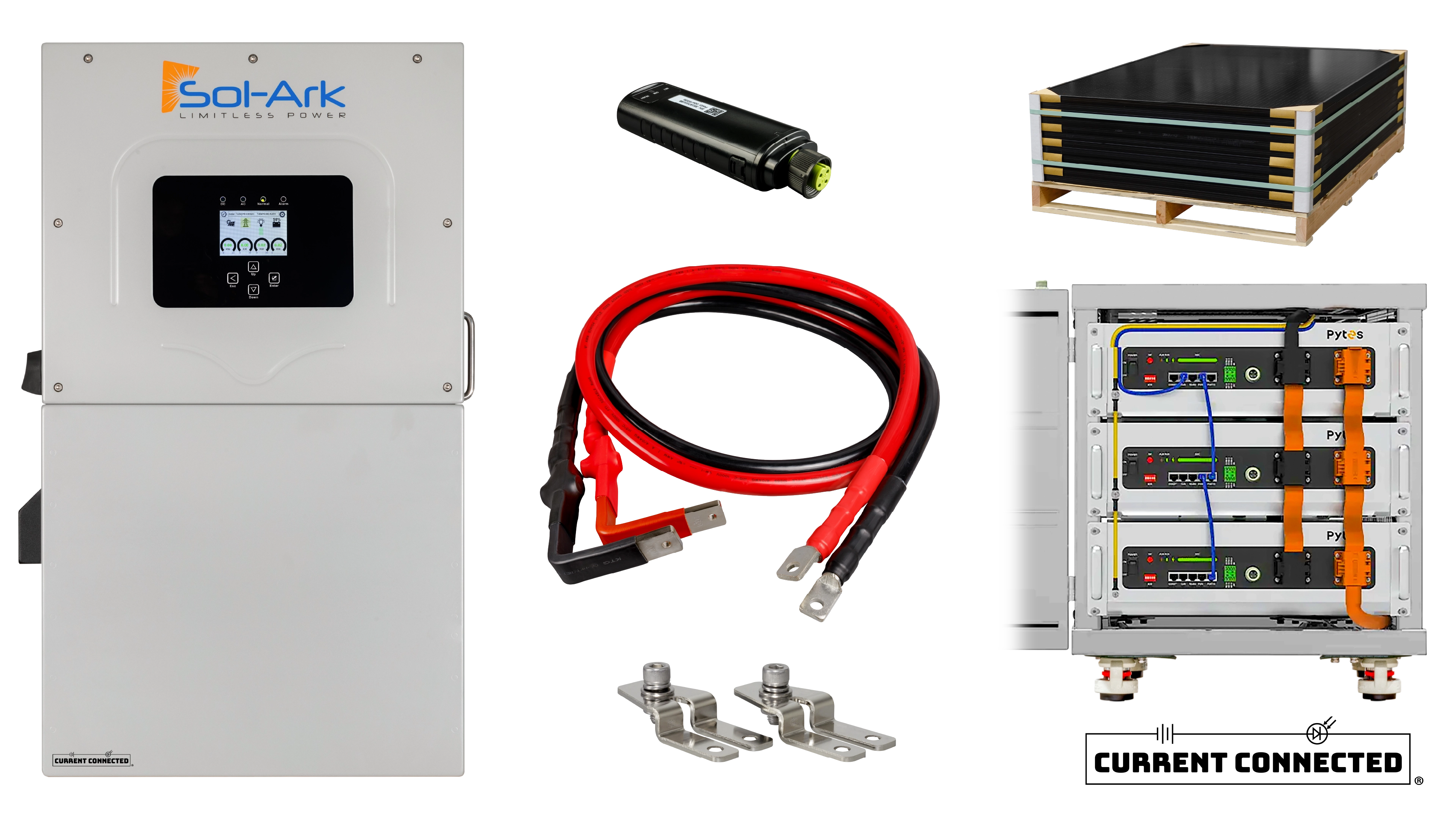

A UL 9540 certified energy storage system, built from Sol-Ark and Pytes pairings. Choose your Sol-Ark all-in-one inverter, size your Pytes V5 battery bank, and add solar components if you want them.
What You Can Configure:
-
Inverter: Sol-Ark 12K-2P or 15K-2P
-
Battery bank: Pytes V5
-
Solar components (optional)
Configure Your System
Inverter
RequiredChoose Inverter*
Product Details
Sol-Ark 15K-2P-N Limitless 15K-LV 48V Hybrid Inverter, 15kW With Solar, 12kW Battery Output, 19.5kW PV Input, 3 MPPT, 200A Pass-Through, UL 1741 SB
The Sol-Ark 15K-2P-N (Limitless 15K-LV) runs a whole home from one outdoor-rated box: a 48V battery inverter-charger, three MPPT solar inputs, a 200A grid pass-through and automatic generator start. It delivers 15kW continuous with solar and 12kW from batteries alone, sells back to the grid under UL 1741 SB, and comes in a standard or EMP-hardened version.
Specifications:
- 15kW continuous with solar and 12kW from batteries alone, with up to 24,000VA for 10 seconds off grid
- 19.5kW of usable PV across 3 MPPTs with 2 strings each, 150V to 500V
- 26A operating and 44A short-circuit current per MPPT
- 275A battery charge and discharge for 48V lithium, with closed-loop CANbus and RS485
- 200A grid pass-through with a 5 millisecond transfer to battery
- Integrated rapid shutdown, arc fault and ground fault detection, and a PV DC disconnect
- UL 1741 SB, IEEE 1547.1-2020, California Rule 21 and CSA C22.2 No. 107.1 certified
- IP65 / NEMA 3R, 135 lb (61.2 kg), 31.8 × 19.4 × 12 in (807 × 494 × 306 mm) H×W×D, 10-year warranty
Loading options...
Battery Bank
RequiredChoose Battery Bank*
About this kit
This 15.3kWH power solution is ready to go when you need it and where you need it. You can also check on it anytime from anywhere via an easy to use phone app. This kit can store your solar power and feed your inverter with up to 300 peak amps on demand, while remaining portable in a well ventilated rolling rack. If you are looking for backup power or want to peak shave, this system fits the role with style. A set of 4/0 cables is included, which means this kit is ready to connect into practically any inverter.
Charge the system up when the rates are low and avoid the high energy prices during peak hours. You will have power at the ready to feed your inverter both when the grid goes down and in complete off-grid applications. Great in most situations, but an excellent fit for rural homes and cabins in the country.
The V-Box IC is stackable, and includes brackets for securing the top rack to the bottom rack. If a larger system is required, simply choose two of these bundles for 30.6kWh of capacity.
What's Included
Solar Components
OptionalChoose Solar Components
Product Details
Aptos DNA Series 410W Monocrystalline Solar Panels, Level 6 Salt Mist Tested, Residential and Commercial Solar Panels with Black Frames
The Aptos 410W solar monofacial solar panels are designed with PERC technology and level 6 salt mist testing. These panels are ideal for commercial or residential installations.
Specifications:
- Operating Voltage (Vmp): 32.93V
- Operating Current (Imp): 12.45A
- Open-Circuit Voltage (Voc): 37.32V
- Short-Circuit Current (Isc): 13.95A
- Efficiency: 21%
- Monofacial
- PERC technology
- Level 6 salt mist tested
- 108 half cells
- 5.4kPA wind load and snow load
- Weight: 48.5lbs
- Dimensions (H×W×D): 67.7×44.6×1.3in
These modules come on a pallet containing 31 units. We recommend purchasing a full pallet for optimal shipping rates. However, we will build a custom pallet for smaller orders, at a minimum of 8 units.
| Need more than what's available? Tell us what you need and we can source it for you. |
Kit Summary
| Component | Selection | Qty | Subtotal |
|---|---|---|---|
| – | $0.00 | ||
| – | $0.00 | ||
| Excluded | Not included | 0 | – |
| Total | $0.00 | ||
Finish choosing your options above to continue.
Log in to check member pricing and detailed stock information.
Customer Reviews
No reviews yet. Be the first to review this product!
