Sol-Max (formerly MNP) MNPowerflo16 48V 16.08kWh 314Ah LiFePO4 Wall Mount Battery, IP65, UL 1973 & UL 9540 Heated Lithium Battery

SKU: MNPOWERFLO16

Need more than what's available?
Tell us what you need and we can source it for you.

Sol-Max's Wall or Floor Mount battery, the MNPowerflo16! This unit has EVE A+ grade lithium iron phosphate cells. The MNPowerflo16 has a design life of 20 years and 8,000 cycles. These units can be paralleled up to 16 times, allowing up to 257kWh of storage with 16 units. The MNPowerflo16 works flawlessly with the Sol-Max's 'TheOne' inverter.

Specifications:

Nominal Voltage: 51.2V
Nominal Capacity: 314Ah
Kilowatt Hour(s): 16kWh
Cycle Life: 8,000 Cycles at 77°F
Operating Temperature: -4°F to 113°F
Certifications: UL 1973, UL 9540A tested, UL 9540
IP Rating: IP65
Dimensions (L×W×D): 31.50×19.69×8.87 in
Weight: 284lbs

Downloads (3): Brochure, Manual, Certifications

Current Connected is YOUR Sol-Max (formerly MNP) product specialist

Explore Lineup

Have a question about this product?+

The MNPowerflo 16 is a lithium phosphate battery that works with any inverters that support lithium iron phosphate (LFP). They are ideal for low-voltage energy storage system (ESS) applications. These batteries use lithium iron phosphate cells with the highest safety performance and a battery management system (BMS) to monitor and collect each cell's real-time voltage, current, and temperature within the module. The BMS also contains a passive balance function and an advanced battery control method, which can help improve the battery pack's performance. For enhanced security, the battery is equipped with onboard fire extinguishing devices. With a design life of more than 20 years, the Wall Mount is designed for over 8000 cycles (at an operating temperature of 77°F [25°C]). These batteries can also communicate with any inverter using the Pylon Protocol, making them perfect for any large system that needs communication. The MNPowerflo16 is compatible with residential, commercial, industrial, off-grid, grid-tie, and self-consumption systems. It also has UL 1973 and UL 9540 listings, plus UL 9540A testing, meaning it can operate in any on-grid system that needs these certifications. The battery also offers monitoring through the MidNite Pro app. The MNPowerflo16 has guaranteed compatibility with the MidNite 'TheOne' inverter. This battery makes communication between the inverter and other batteries easy, as it automatically assigns addresses. This means there are no dip switches or need for manual address assigning. There are no extra steps to communicate between batteries; it has simple plug-and-play capabilities. Up to 16 of these batteries can be connected in Parallel, offering up to 257kWh. These batteries can also be mounted on the floor or the wall, making them perfect for any grid-tied or grid-adjacent systems.

Battery Features:

IP65 is all-weather rated and integrated with self-heating during low ambient temperatures.
Active balancing of cells enhances battery consistency and lifespan, up to 20 years with over 8,000 cycles (at an operating temperature of 77°F [25°C]).
Built-in intelligent BMS with battery voltage, current, temperature, and health management to reduce electrical risks and overheating.

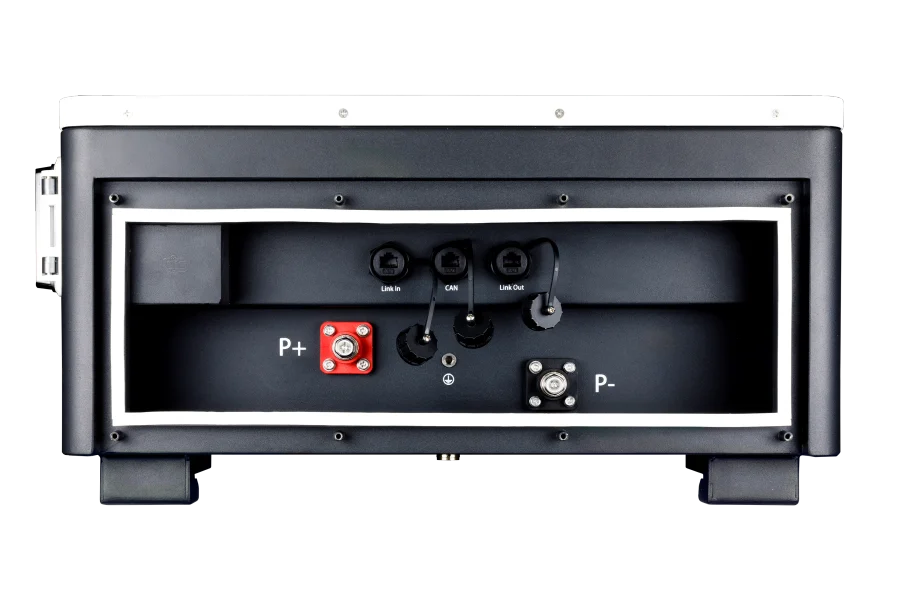

Communicate with the inverter using CAN or RS485. Firmware update using RS485
High-reliability 250A DC connector.
Stable, reliable, and maintenance-free battery pack.
Comprehensive safety: UL 1973 and UL 9540 listed, UL 9540A tested on cell and module level with enhanced onboard fire-extinguishing modules.
