Midwest 30A TT-30 Outdoor RV Outlet

The Midwest 30A RV Power Outlet provides a weatherproof NEMA TT-30R receptacle for temporary power connections in a rugged NEMA 3R enclosure. Factory-assembled and tested, this unit arrives ready for immediate installation without requiring field assembly of individual components.

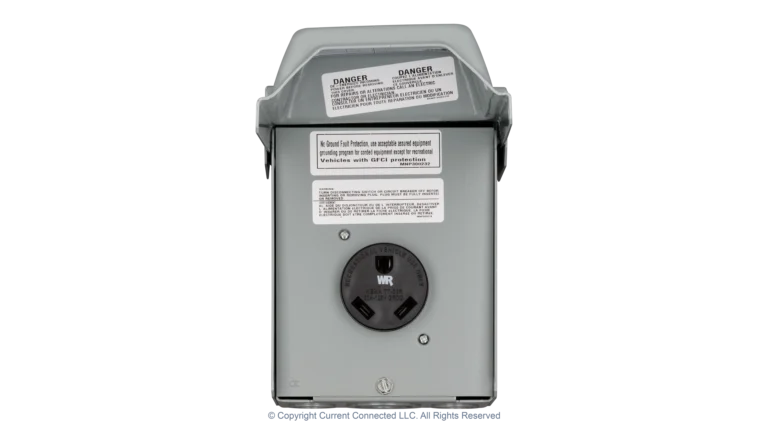

The NEMA TT-30R receptacle delivers 120V single-phase power at 30A, matching standard shore power connections for travel trailers, pop-ups, and smaller motorhomes. This three-prong configuration prevents accidental disconnection while providing reliable power for essential RV systems including air conditioning, converter/chargers, and appliances. The receptacle accepts standard 30A RV power cords with the distinctive rounded TT-30 plug design.

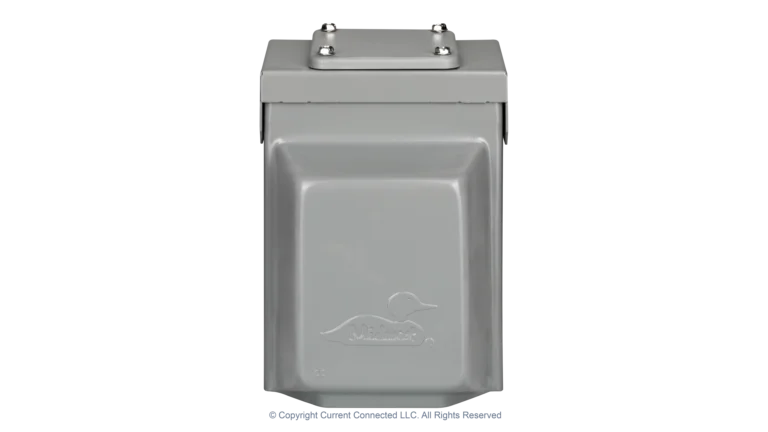

Construction features heavy-gauge G-90 zinc-coated steel that resists corrosion and maintains appearance through years of outdoor exposure. The welded flange design creates a single-piece enclosure that eliminates water entry points while providing superior structural integrity. Dead-front construction prevents accidental contact with live terminals, meeting strict safety requirements for public and residential installations.

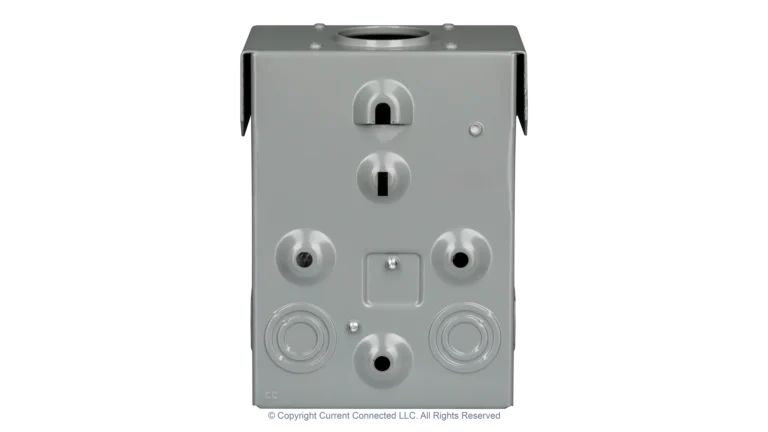

The hinged door includes rolled edges that protect service cables from abrasion and a padlock hasp for securing access when needed. Multiple knockouts accommodate 1/2" through 1-1/2" conduit for top or bottom feed configurations. Wire terminals accept 14-8 AWG copper or 12-6 AWG aluminum conductors for line, neutral, and ground connections.

Measuring approximately 9-1/8" H x 5-3/4" W x 5-3/16" D, the compact enclosure mounts easily to posts, pedestals, or building walls. All hardware meets NEC Article 551 requirements for RV parks and OSHA standards for temporary power. UL listed for safety with a 1-year manufacturer warranty.
