MidNite Solar MNEDC 175A or 250A Circuit Breakers, 50kAIC at Up to 125Vdc, Non-Polarized Panel Mount Breaker, Single Pole

SKU: MNEDC250

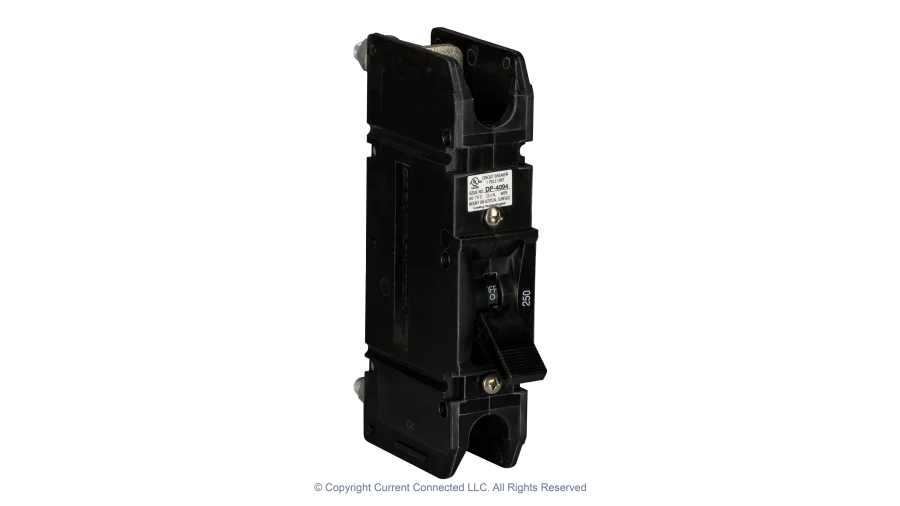

High quality photo of the Midnite Solar - MNEDC250 - MNEDC 250A Breaker - Top Angle View. Photographed by Current Connected

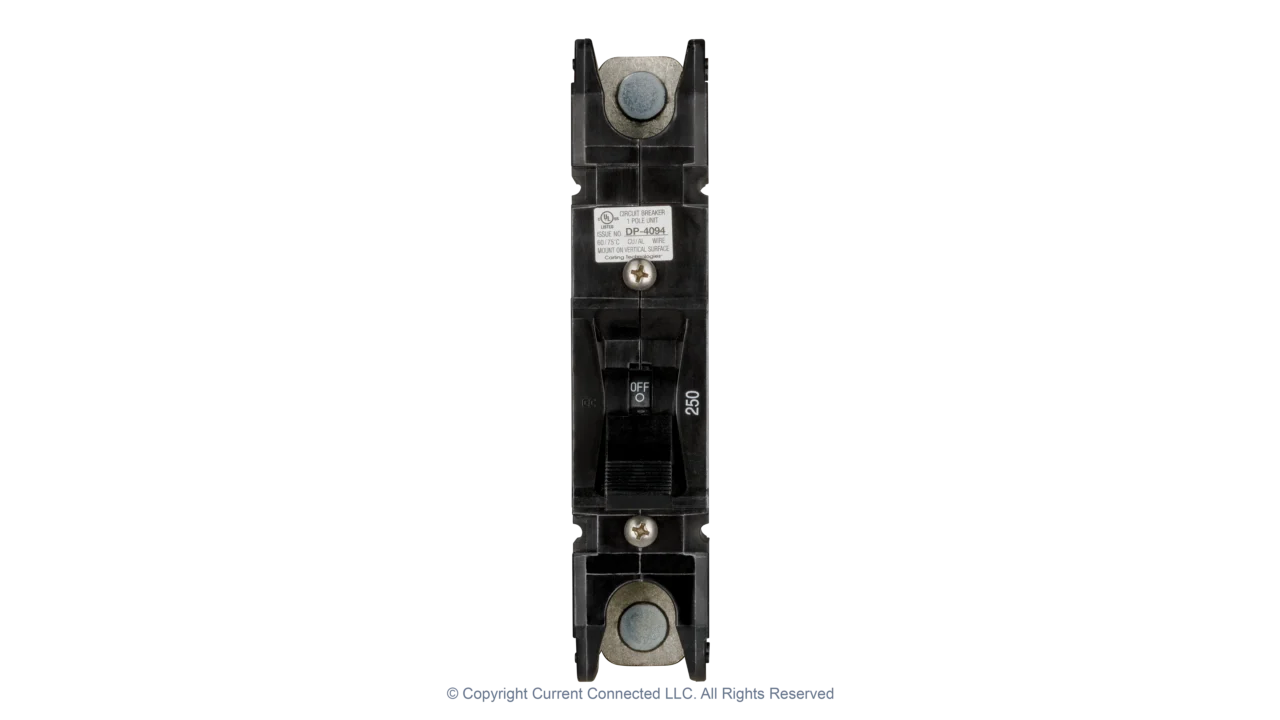

High quality photo of the Midnite Solar - MNEDC250 - MNEDC 250A Breaker - Front View. Photographed by Current Connected

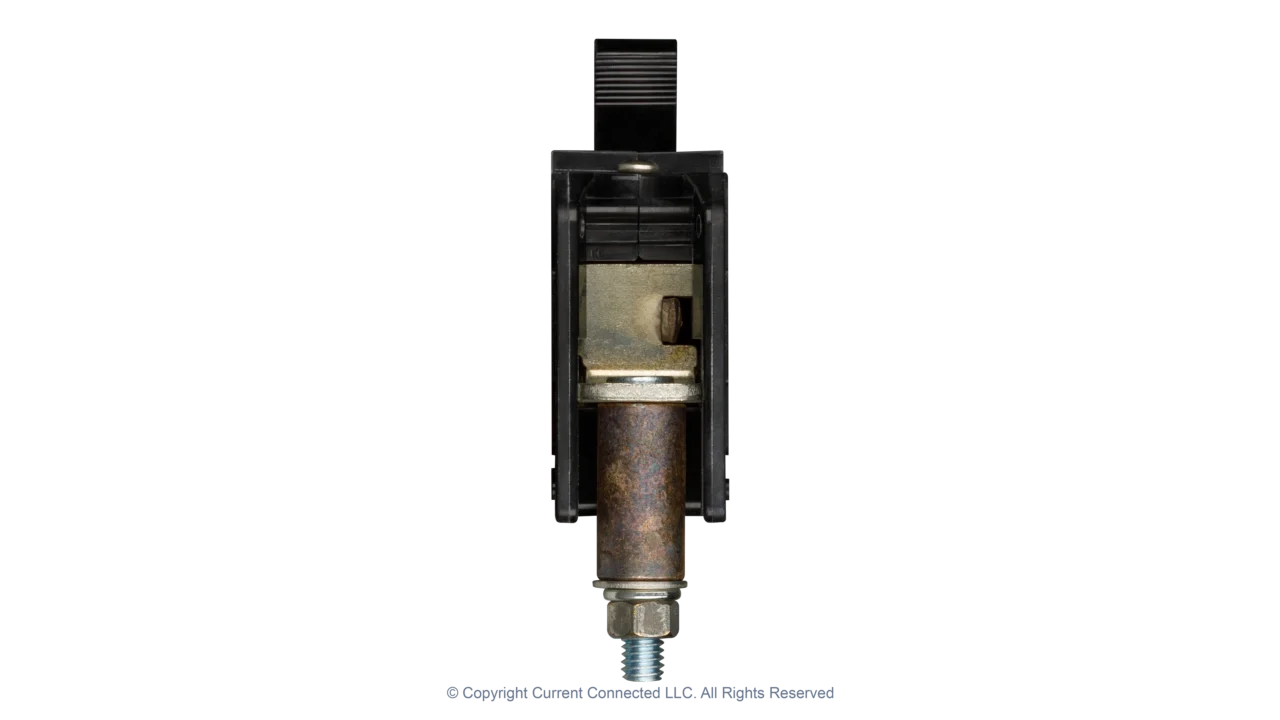

High quality photo of the Midnite Solar - MNEDC250 - MNEDC 175A/250A Breaker - Bottom View. Photographed by Current Connected
High quality photo of the Midnite Solar - MNEDC250 - MNEDC 175A/250A Breaker - Side View. Photographed by Current Connected
$127.92

Log in to check member price and detailed stock information.

Need more than what's available?
Tell us what you need and we can source it for you.

Product Summary

The MidNite MNEDC 175A or 250A breaker is capable of up to 50,000 AIC at 125VDC. When mounted in a MidNite enclosure, it can be used at 100% of the rated current.

Specifications:

  • Non-Polarized
  • 1.5 inches – 3/8 inch studs
  • Type 1 Environmental Rating (Indoor)
  • 125Vdc Panel Mount Breaker
  • 50,000 AIC at 125Vdc
  • Breaker torque value: 15 ft-lbs (20.4 Nm)
  • Includes two 10-32 x 3/8" pan head Phillips mounting screws
  • Professional-grade construction for commercial and residential use
  • Weight: 3 lbs
Current Connected
×
MidNite Solar

Current Connected is YOUR MidNite Solar product specialist

Explore Lineup

Built for reliable performance in demanding electrical systems, this 1.5in MidNite Solar MNEDC circuit breaker is engineered to repeatedly break the full rated load without damage. It's a dependable disconnect solution for a residential or commercial installation, designed for precision and durability.

Due to its time-proven hydraulic/magnetic design, the load sensing mechanism is resistant to changes in ambient or enclosure temperature. This provides  a consistent trip point for temperatures from -40°F to 185°F. In addition, these circuit breakers come with a choice of overload time delays, making them ideal for critical applications with inductive loads.

MidNite Solar is an American company committed to manufacturing excellence. With all products built to the highest quality standards, MidNite Solar has established itself as a trusted name in the renewable energy and electrical components industry. Their dedication to superior engineering and rigorous quality control ensures that every component meets the demanding requirements of professional installers and off-grid DIYers.

These breakers pair well with other MidNite products, and when installed in a MidNite enclosure, these breakers perform to 100% of their rated current capacity.
