MidNite Solar Lithium Battery Combiner (MNLBC/MNLBC-W250)

SKU: MNLBC/MNLBC-W250
BrochureManual

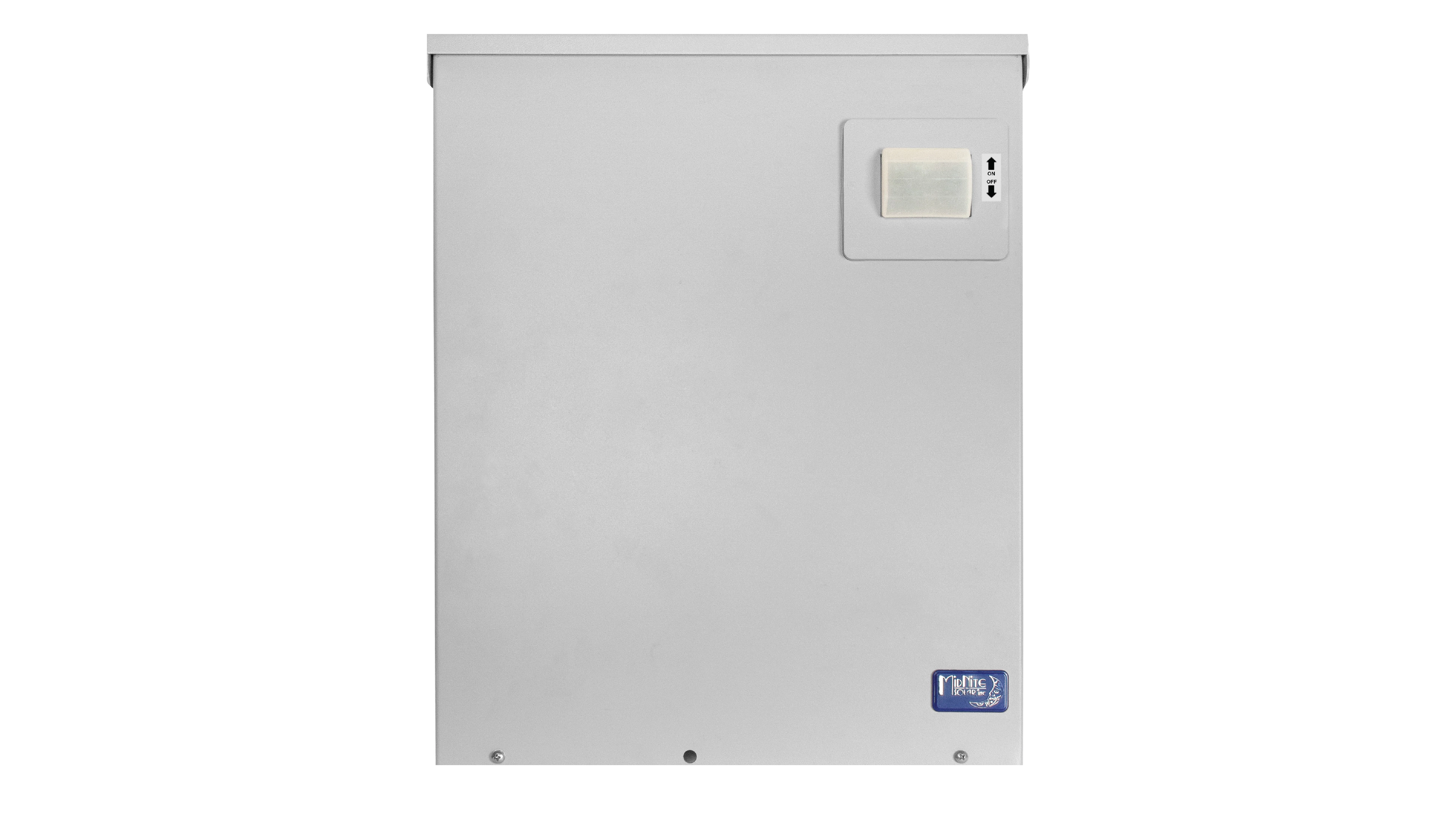

The MidNite Solar MNLBC line is a set of lithium-based Battery Combiners. This combiner box is perfect for any battery configuration, rated up to 250A max, 80VDC, and with slots for up to 1/0AWG wire.

Specifications:

    • Combines Up To 14(10 on disconnect version) Strings Of Batteries
    • Up To 1/0 Wire Per Input
    • Rated For Up To 80 Volts DC Maximum
    • 250 Amps Maximum
    • 10 Each 3/4 Inch Knock Outs For Cable Entry
    • 2 Each 2 Inch Knock Outs For Cable Entry
    • 2 Output Studs 3/8 Each
    • Type 3R Aluminum Powder Coated Enclosure
    • 5 Year Warranty
    • ETL Listed For US And Canada UL1741 And CSA

22.2

-

Description

The MidNite Solar Lithium Battery Combiner is good for any system with multiple batteries that need a centralized place to connect them. With busbars for both positive and negative, there is no need for any external components. This combiner helps keep the wiring and system setup clean and easy. It is good for any residential or off-grid solar system.

Recommended Accessories:

Additional information

Brand

Midnite Solar
Battery Voltage

12 Volts DC, 24 Volts DC, 36 Volts DC, 48 Volts DC
Disconnect Switch

Yes, No
