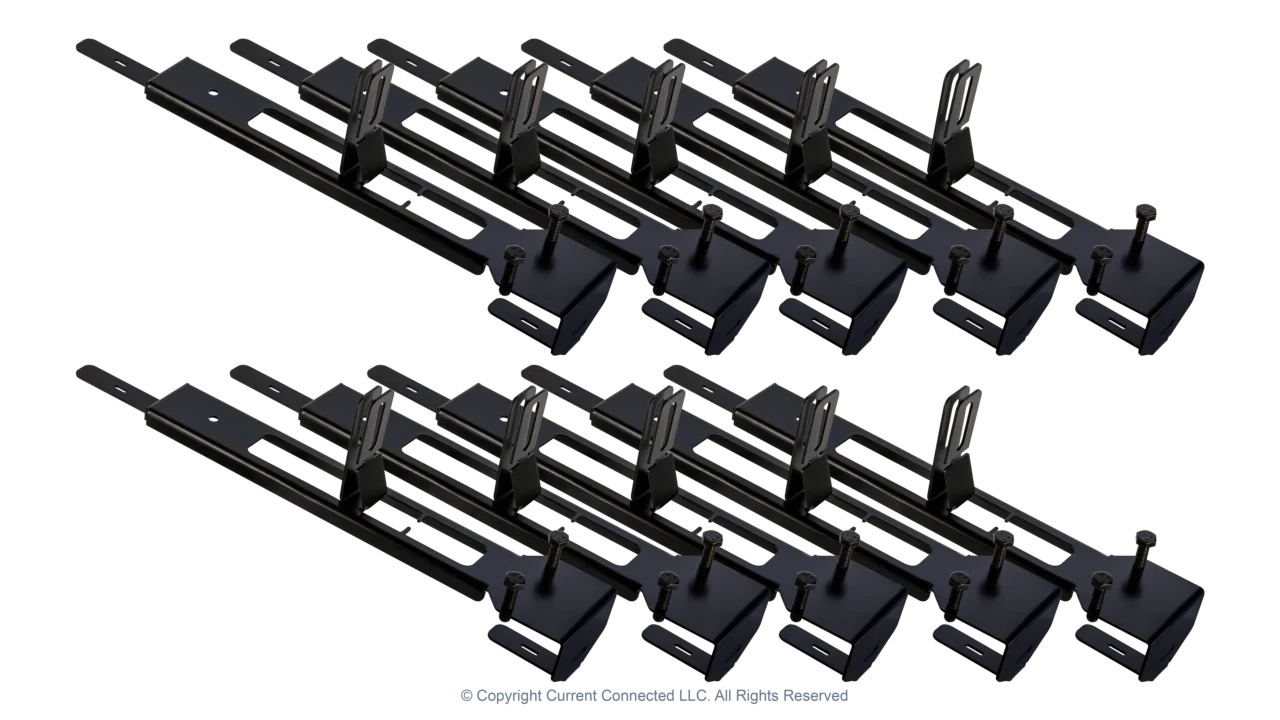

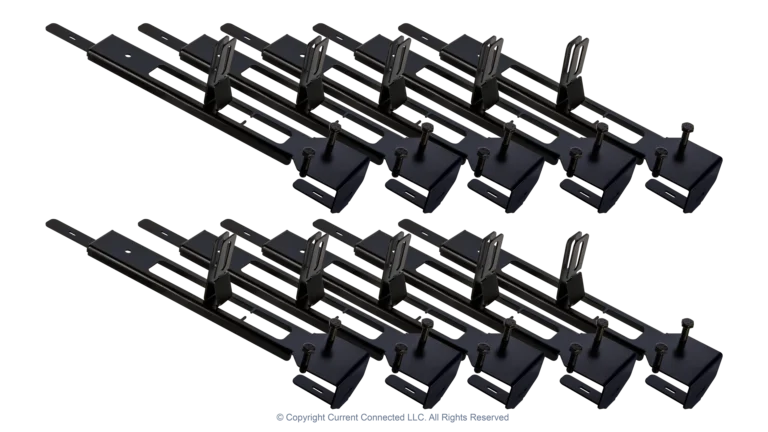

IntegraRack IR-T1 TileBallast Solar Panel Roof Mounting System, No Penetration Tile Roof Mounts for PV Modules

The IntegraRack IR-T1 has revolutionized the way we approach mounting. With its 25-year guarantee, you can trust IntegraRack's reliability.

Key Features:

• Aeronautical Wind Tunnel Tested
• For use with all rail systems
• 4x Faster install times
• Integrated flex point prevents bolt tension from cracking tiles.
• Black Zinc finish
• Can be installed in less than 2 minutes
• Doesn’t require tile removal or any roof penetrations.
• 25-year warranty



Specifications:

• IntegraRack IR-T1 Works with most styles of concrete roof tiles with at least 1.25 inch thickness and 11.75-15.5 inch spacing. Only recommended for use with concrete roof tiles.
•  Can withstand almost 175 lbs of direct  uplift per mount
• The IR-T1 is compatible with Flat, S, and W style concrete roof tiles with 11.75" - 15.5" row spacing.
• Capable of withstanding up to 150 mph winds



Included:

• 2 M8 1.25x24mm Black Tile Tension Bolts
• 1 IR-L1 Universal L-Foot Bracket
• 2 M8-1.25x16mm Carriage Bolts
• 2 M8-1.25 Serrated Nuts



Epoxy glue sold separately.
