IntegraRack IR-F2 Under Mount Flange Clamp Bonding Bracket, 10 Pack, Rail-Free Solar Panel Clamp for BallastRack and MultiBallast Mounts
SKU: IR-F2FS0090


Log in to check member price and detailed stock information.
| Need more than what's available? Tell us what you need and we can source it for you. |
Product Summary
The IntegraRack IR-F2 is the under mount flange clamp that holds solar panels on BallastRack and MultiBallast mounts without rails. Two piercing barbs bite through each panel's anodized frame as you tighten it, so the same clamp that holds the panel also bonds it to the next one.
Specifications:
-
Clamps to the inner flange of framed solar panels, with no rails, mid clamps or end clamps
-
Two piercing barbs bond each panel frame to the next
-
Tightens to 10 ft-lb (120 in-lb) with a 1/2 in (13 mm) wrench
-
100% stainless steel and coastal rated
-
UL 2703 recognized component
-
Ten clamps per pack, no bolts or nuts included
-
Lets you slide panels for height alignment before tightening
-
Built-in zip-tie slot for wire management

Current Connected is YOUR IntegraRack product specialist

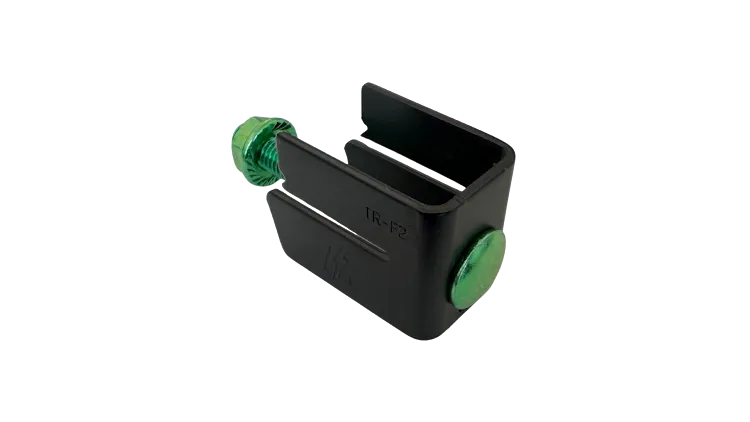

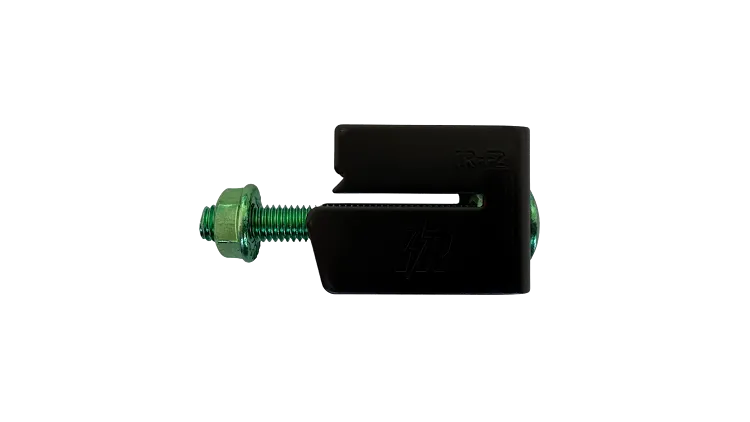

About the IntegraRack IR-F2 Under Mount Flange Clamp Bonding Bracket
The IR-F2 is the part that makes IntegraRack racking rail-free. It grips the inner flange of each panel from underneath and clamps it to the frame or bracket below, so there are no rails to cut, splice or ground. Made from 100% stainless steel, it’s coastal rated and a UL 2703 recognized component. Keep a pack on hand for spares or swapping panels later.
Rail-Free Solar Panel Clamp and Bonding in One Part
Two sharp barbs press through the anodized aluminum panel frame as you tighten the serrated nut, creating a bonded path from panel to panel along the row. On BallastRack frames, that bond carries from panel to panel without separate jumpers, and IR-B1 bonding jumpers tie the rows together.
Installing the IR-F2 Flange Clamp
Slide each panel into the bracket slot, adjust it for height alignment, then tighten the serrated nut to 10 ft-lb (120 in-lb). IntegraRack warns against going past that number and says to stop if the frame starts to bend. The built-in zip-tie slot keeps PV wire tidy along the frame.
Which IntegraRack Mounts Use the IR-F2
Every BallastRack frame uses four IR-F2 clamps, including the IR-15 and IR-30, and so does each MultiBallast and DB Series rooftop kit. The 10 pack is clamps only, so reuse the carriage bolts and serrated nuts from your frames, or pick up IntegraRack’s BallastRack Hardware Kit, which pairs four clamps with a full set of stainless bolts and nuts.
Panels with an unusually thick or folded frame edge take IntegraRack's wide slot IR-F2 instead, and our support team is happy to confirm which one fits your panels.
