[Discontinued] IntegraRack IR-D1 Super Sealing Multi-Surface Deck Mounted Bracket

The IR-D1 Multi-Surface Deck Mounted Bracket is extremely fast and versatile for mounting solar modules on metal and asphalt roof surfaces. This bracket can be deck mounted with no need to find joists or rafters, and utilizes IntegraRack’s Super Sealing Technology.

– Compatible With Rails Or Go Rail-less

The IR-D1 is an easier solution for solar module mounting on metal and asphalt roof applications. The upright part of the bracket includes an opening for a 5/16″ T-Bolt and an adjustable slot for a 3/8″ T-Bolt, making it capable of mounting with any rail based system.  Alternatively, IR-F1 panel brackets can be used to attach the modules right to this bracket.

– Super Sealing Technology

This deck mounted bracket is fitted with Hydro-Sealing Mastic Rubber on the bottom of the feet. This thick rubber will expand into the threads of the deck bolts and through the two visual inspection holes when the proper amount of bolt pressure is applied to ensure a 100% infusion seal with the roof surface. The IR-D1 comes standard with four self piercing deck mounting bolts and EPDM sealing washers.

– Works On Most Metal and Asphalt Surfaces

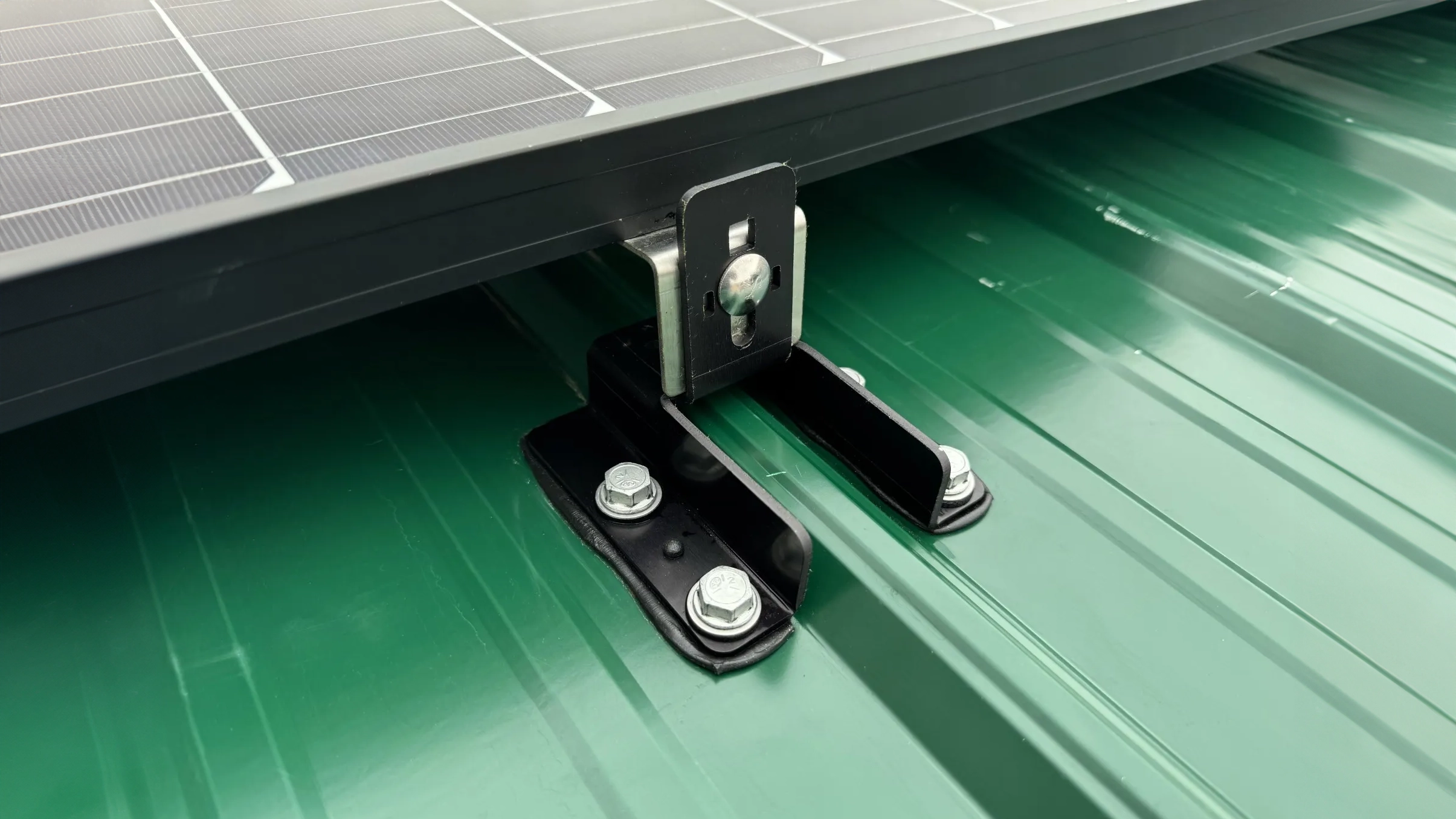

The IR-D1 Brackets “hat shaped” design is specifically suited to fit around the corrugation of a large variety of standard metal roofs while providing necessary strength and clearance for the solar modules.

– Deck Mounted

Designed for deck mounting, so there is no need to find Rafters or Joists for the mounting of this bracket. This provides ample flexibility when installing modules on a roof and, in some cases, allows for the placement of more modules than traditional metal or asphalt roof mounts.
