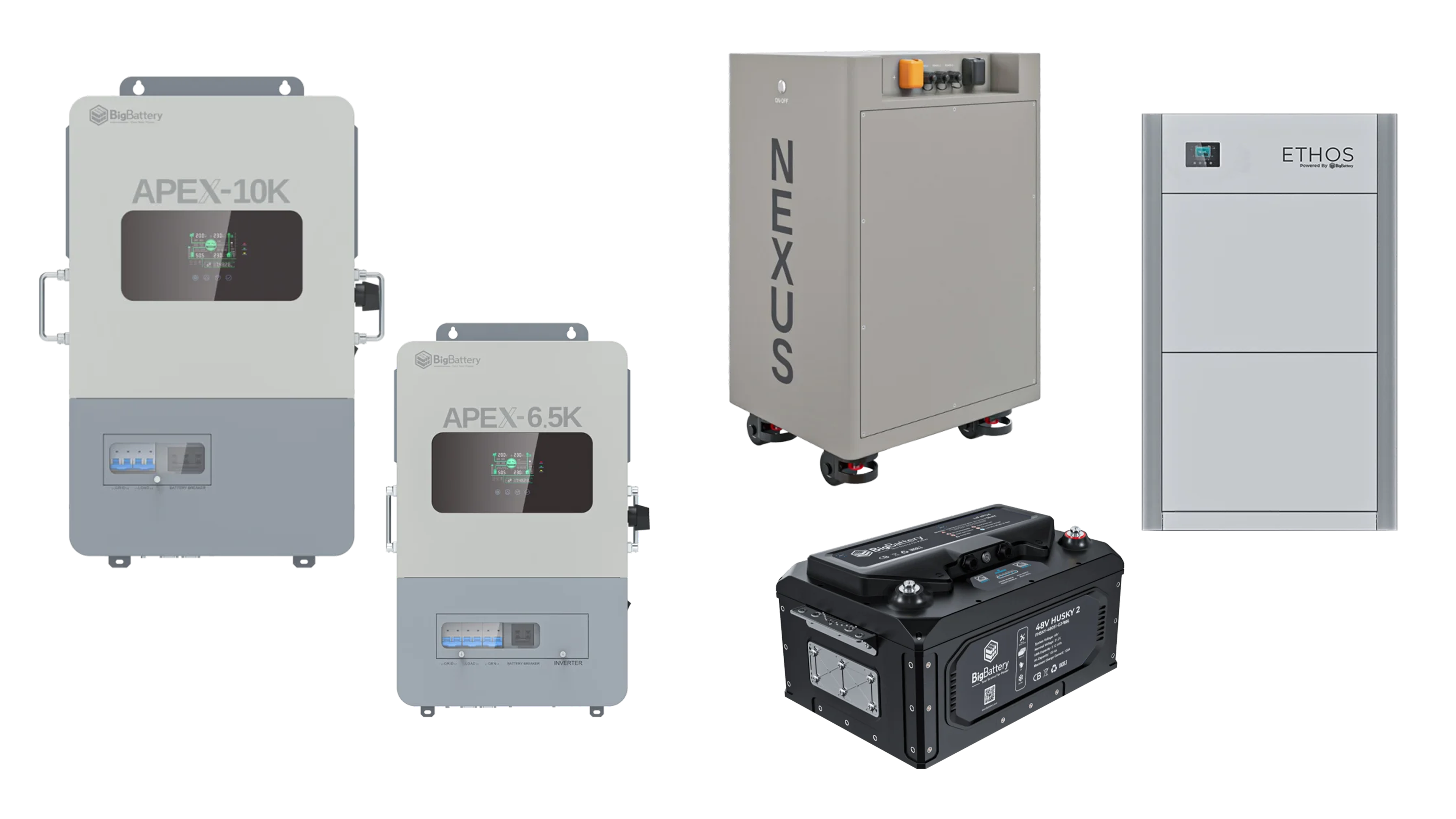

Customizable BigBattery Home Inverter and Battery Kit for Grid-Tied or Off-Grid Renewable Energy Systems


$5,803.00

Log in to check member price and detailed stock information.

Configure Your System

Inverter

Required

The inverter is the part of the system that takes DC power from batteries and converts it to AC power, which is used to give appliances and electronics the energy they need to work.

Both of the APEX inverters are off-grid all-in-one inverters. This means they do not export power onto the grid and they have a built-in solar charge controller to take in solar power.

Choose Inverter*

Product Details

BigBattery APEX-6.5K Off-Grid Inverter, 48V All-in-One Inverter with 10kW Solar Input, UL 1741

High quality photo of the Big Battery Apex-6.5k Front View. Photo sourced by Current Connected.

Whether you’re protecting your home from rolling blackouts, building an off-grid cabin, or creating a solution for a grid-tied residence, the APEX-6.5K provides energy independence. The combination of pure sine wave output, comprehensive safety, and reliable backup power makes this the ideal solution for your energy storage needs. With long lasting performance, safety, reliability, and a 5 year warranty, the APEX-6.5K system provides years of dependable power for your home or business.

Specifications:

  • Continuous output power: 6.5kW @ 120/240Vac
  • Surge capacity: 13kW
  • Number of MPPTs: 2
  • MPPT operating voltage range: 125-450Vdc
  • Max. PV input current: 18A per MPPT
  • Max. charge current from solar: 140Adc
  • 2x AC inputs: Grid and generator
  • Max. charge current from grid or generator: 80Adc
  • Max. efficiency: 99.9%
  • Communication: RS485, CAN, USB, and dry contact
  • Certifications: UL1741
  • Weight: 48lbs
  • Dimensions (H×W×D): 25.51×16.14×5.51in
$1,250.00
Need more than what's available?
Tell us what you need and we can source it for you.
Component subtotal:
$1,250.00

Batteries

Required

The batteries are the part of the system that store energy for the inverter to use as needed to power appliances and loads. Since the APEX inverters are all based off 48V batteries, all of the batteries listed here are also 48V batteries.

Choose the ETHOS for 10.24kWh of stackable storage, which can be expanded with additional modules. This battery utilizes quick connectors on their positive and negative terminals.

Choose the NEXUS for 15kWh of compact and energy-dense storage. The stud terminals allow for a broad selection of cabling, which makes finding custom power cables considerably easier. The cables provided with the battery are 4 AWG with 5/16" ring terminal lugs on one end and 3/8" ring terminal lugs on the other.

Choose the HUSKY 2 INV batteries for configurations that require a smaller footprint. This battery also uses stud terminals for custom cable lengths, and it works great for less conventional setups.

Choose Batteries*

Product Details

BigBattery NEXUS 48V 15kWh LiFePO4 Battery, 300Ah, Self-Heating, Fire Suppression, Solar and Home Backup Storage

High quality photo of the Big Battery 48V Nexus 15kWh Front View. Photo sourced by Current Connected.

The BigBattery NEXUS is a 48V LiFePO4 battery that puts 15kWh in one floor-standing cabinet, enough to carry an off-grid cabin through the night or keep a home’s essential circuits running through an outage. It warms itself before charging in the cold, carries its own aerosol fire suppression, and talks closed-loop with EG4 and Victron inverters, with room to grow to 15 units in parallel.

Specifications:

  • 51.2V nominal for 48V systems, 15kWh (300Ah) of LiFePO4 storage
  • 140A continuous charge and discharge, 270A peak discharge for 1 second
  • Rated for more than 4,000 cycles at 80% depth of discharge
  • Internal heater; charges from 32°F to 113°F and discharges from -4°F to 113°F
  • Closed-loop CAN and RS485 communication for EG4, Victron and BigBattery APEX inverters
  • Up to 15 units in parallel (225kWh); parallel only, no series connection
  • IP54 floor-standing cabinet with built-in aerosol fire suppression
  • 30.8×19.7×15.7in (782×500×400mm), about 315 lb (143 kg), power and communication cables included
$2,980.00 $2,831.00
Need more than what's available?
Tell us what you need and we can source it for you.
Component subtotal:
$2,980.00 $2,831.00

Solar Panels

Optional

Solar panels are a great way to add in renewable energy to your system. A solar charge controller is conveniently built into the APEX inverters to convert the energy made by the solar panels into usable power for the inverter to pass onto loads or to charge connected batteries.

Choose Solar Panels

Product Details

Aptos DNA Series 410W Monocrystalline Solar Panels, Level 6 Salt Mist Tested, Residential and Commercial Solar Panels with Black Frames

Solar Panels

The Aptos 410W solar monofacial solar panels are designed with PERC technology and level 6 salt mist testing. These panels are ideal for commercial or residential installations.

Specifications:

  • Operating Voltage (Vmp): 32.93V
  • Operating Current (Imp): 12.45A
  • Open-Circuit Voltage (Voc): 37.32V
  • Short-Circuit Current (Isc): 13.95A
  • Efficiency: 21%
  • Monofacial
  • PERC technology
  • Level 6 salt mist tested
  • 108 half cells
  • 5.4kPA wind load and snow load
  • Weight: 48.5lbs
  • Dimensions (H×W×D): 67.7×44.6×1.3in

These modules come on a pallet containing 31 units. We recommend purchasing a full pallet for optimal shipping rates. However, we will build a custom pallet for smaller orders, at a minimum of 8 units.

$287.00
Need more than what's available?
Tell us what you need and we can source it for you.
Component subtotal:
$1,722.00

Solar Panel Racking

Optional

If you have solar panels, you'll need a way to mount them. IntegraRack's mounting options are fast and easy to install.

The BallastRack series works great for ground mounts, though you'll need a way to secure the frames. IntegraRack makes a few options that we'll explore in the next section.

The BallastBase and MultiBallast series is great for flat roofs or flat ground mounts. These racks utilize concrete blocks to weigh down the panels and prevent lift even in wind storms. Alternatively, you could use the SIKAFLEX epoxy in the next section to glue down the racks to reduce weight on the roof.

Choose Solar Panel Racking

This component will not be added to your kit. Pick an option above to include it.

Kit Summary

–
$0.00
–
$0.00
Not included
0
–
Not included
0
–
Total
$0.00

Finish choosing your options above to continue.
