Cummins C20D6 20kW Diesel Home Standby Generator with 24-Hour Fuel Tank (120/240V Single Phase), A063P961

Description

Why Choose a 20kW Diesel Standby Generator for Your Home?

When the grid goes down, a diesel home standby generator keeps your household running without interruption. Unlike natural gas or propane units, a diesel backup generator does not depend on utility gas lines that can fail during the same storms that knock out your electricity. Diesel fuel stores safely for extended periods, is widely available, and delivers more energy per gallon than gasoline, giving you longer runtimes and lower fuel costs during prolonged outages. For homeowners in rural areas, off-grid properties, farms, and small commercial facilities, a 20kW diesel generator provides enough power to run heating and cooling systems, refrigeration, well pumps, lighting, and essential electronics all at the same time.

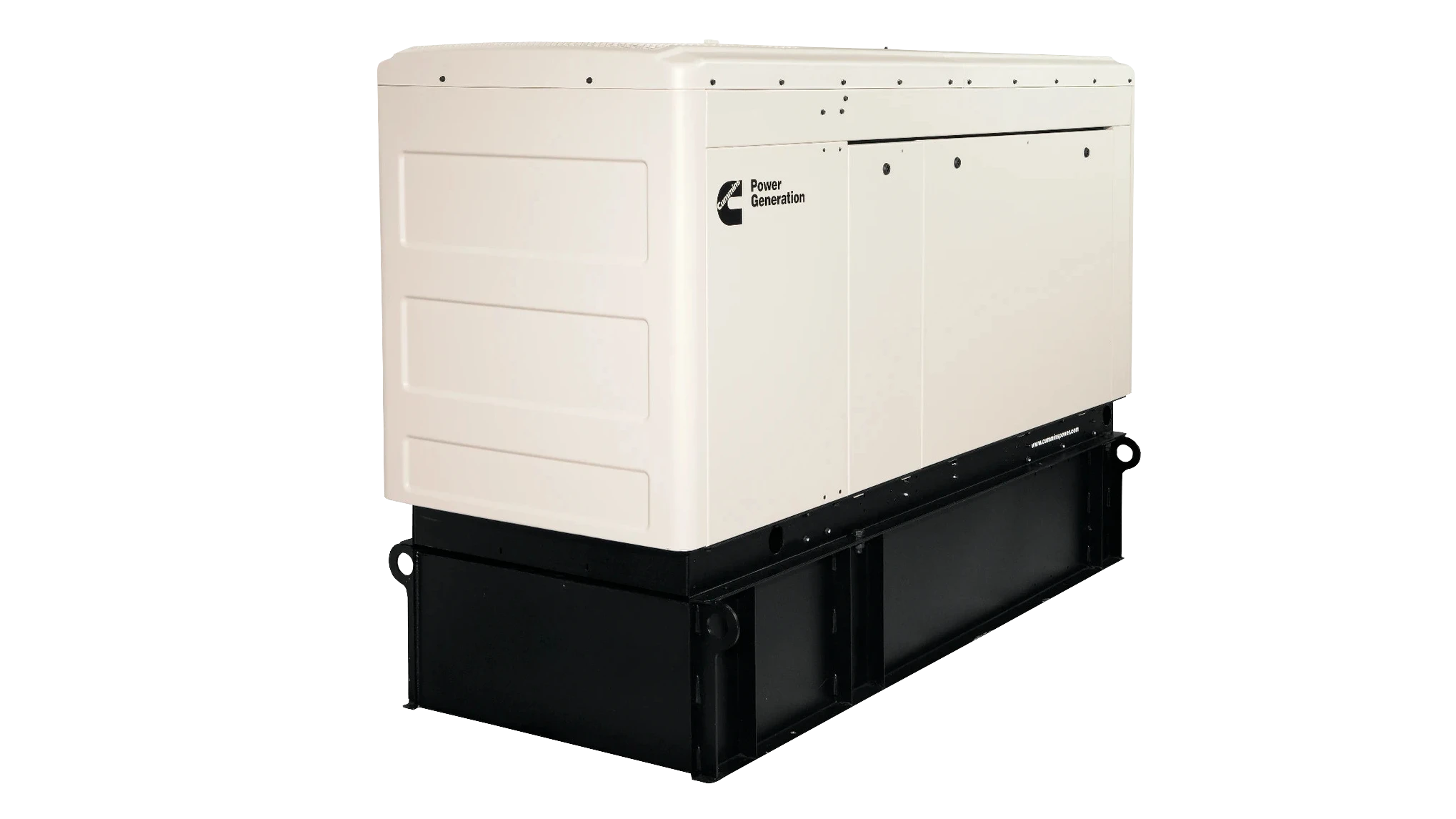

The Cummins C20D6 (model number A063P961) is a preconfigured 20kW automatic standby diesel generator from the Cummins Quiet Connect Series. It ships ready to install with an integrated 24-hour steel fuel tank (approximately 43 gallons), a Sound Level 1 sandstone enclosure, and the PowerCommand 1.1 digital controller. This is a whole house diesel generator designed for residential and light commercial backup power applications, and it is made in the USA by one of the most trusted names in power generation.

Heavy-Duty Kubota Diesel Engine

At the core of the C20D6 is the Kubota V2203M, a 2.2-liter inline 4-cylinder liquid-cooled industrial diesel engine with a cast iron block. Rated at 1800 RPM, this engine delivers dependable power and fast response to changing electrical loads. It is paired with a 50-amp battery charging alternator and uses a spin-on oil filter with a built-in pressure relief valve, keeping routine maintenance straightforward and fast.

The standard cooling system handles ambient temperatures up to 122°F (50°C), and factory-installed coolant heaters ensure reliable cold-weather starts down to -40°F (-40°C). Whether you are dealing with summer heat in the desert Southwest or deep winter cold in the northern states, this diesel generator starts and runs when you need it.

Clean, Stable Power Output

The C20D6 features a brushless 4-pole revolving field alternator with a 2/3 pitch stator winding and a direct-coupled flexible disc rotor. The Class H insulation system (per NEMA MG1-1.65) supports a standard temperature rise of 120°C (248°F) in standby duty. Total harmonic distortion stays below 5% from no-load to full linear load, with less than 3% on any single harmonic. This level of power quality means your sensitive electronics, computers, medical equipment, and smart home systems receive clean electricity without risk of damage from voltage spikes or dirty power.

The Telephone Influence Factor (TIF) is rated below 50 per NEMA MG1-22.43, and the Telephone Harmonic Factor (THF) remains under 3%. A direct-drive centrifugal blower provides consistent alternator cooling under sustained loads, so power quality does not degrade during extended outages.

PowerCommand 1.1 Digital Controller

The PowerCommand 1.1 electronic controller fully integrates the generator system. It provides automatic remote start and stop, precise isochronous frequency regulation, voltage regulation within ±1.0% from no-load to full load, alarm and status displays, output metering, and automatic shutdown when faults are detected. The controller also includes advanced self-diagnostic capability that reduces troubleshooting time and simplifies service for your installer or technician.

A flexible exercise mode lets you set the schedule, duration, and frequency of generator exercise cycles. This reduces unnecessary fuel consumption, emissions, and noise between outage events, while keeping the engine and alternator ready to perform when a real power failure occurs.

Built for Extended Runtime

The integrated 24-hour basic fuel tank holds approximately 43 gallons of diesel. At 50% load, this provides an estimated 44 hours of continuous runtime before refueling is needed. Even at full load, the C20D6 consumes only 1.81 gallons per hour, giving you roughly 24 hours of uninterrupted backup power from a single tank. For homeowners and businesses that experience extended power outages from storms, wildfires, or grid instability, this kind of fuel capacity is essential.

Fuel Consumption by Load:

Quiet Operation

The Sound Level 1 sandstone enclosure keeps noise down to 68.4 dB(A) measured at 23 feet. That is comparable to a normal conversation, making this one of the quieter 20kW diesel standby generators on the market. It will not disturb your neighbors or violate most residential noise ordinances.

Electrical Output and Circuit Protection

The C20D6 delivers 120/240V single-phase power at 83 amps with a 100-amp mainline circuit breaker. For applications that do not require full standby output, the unit is also rated at 18.2kW for prime power duty. A standard 6-amp battery charger is included to keep the starting battery maintained and ready.

Certifications and Compliance

This generator is designed in ISO 9001 certified facilities and manufactured in ISO 9001/9002 certified facilities. It carries the following certifications and compliance ratings:

• UL-2200 listed (Stationary Engine Generator Assemblies)
• NFPA 110 Level 1 capable (verified through Cummins Prototype Test Support)
• EPA certified to 40 CFR Part 60 for stationary emergency applications
• FCC Code Title 47 Part 15 Class A and B (radio frequency emissions)
• Governor regulation per ISO 8528 Part 1 Class G3

Installation Requirements

This unit requires professional installation on a prepared concrete slab. A Cummins RA Series automatic transfer switch is required for connection to your home or building’s electrical system (sold separately). Note: the C20D6 is not compatible with Cummins RSS automatic transfer switches. A 12-volt battery with a minimum of 550 cold cranking amps is also required (not included).

Warranty

The Cummins C20D6 is backed by the Cummins 2-year/400-hour limited standby warranty covering parts and labor. Extended warranty options are available up to 5 years or 1,500 hours, including parts, labor, and service travel costs.

Dimensions and Weight
