Victron Energy Smart IP43 1+1 Charger, 12V 50A Battery Charger For Lithium and Lead-Acid Batteries, 85-250Vac Power Input
SKU: PSC125051095
The Victron Smart 12V 50A Battery Charger is perfect for anyone who wants to ensure their batteries are always fully charged and in good condition. With its Bluetooth Smart built-in capability, you can effortlessly set up, monitor, control, update, and synchronize the charger wirelessly. It also features two outputs, allowing you to charge two battery banks simultaneously. Other features include automatic voltage compensation, an adaptive 6-stage charge algorithm, BatterySafe and Storage modes, Remote On-Off and Programmable Relay, and Synchronized Charging with VE.Smart Network. If you are looking for a reliable and high-quality battery charger, the Victron Smart Charger is the perfect choice!
Specifications:
- Programmable adaptive 6-stage charge algorithm
- Input voltage range: 180-265 VAC
- IP43 Certified
- Output voltage range: 9-15 VDC
- Charging current: 50A
- Maximum charging current (second output): 4A
- VE.Direct communication port
- Programmable relay output
- Synchronized charging capability with VE.Smart Network
- Dimensions (H x W x D): 67 x 240 x 180 mm (2.6 x 9.4 x 7.1 in)
- Weight: 2.3 kg (5.1 lbs)

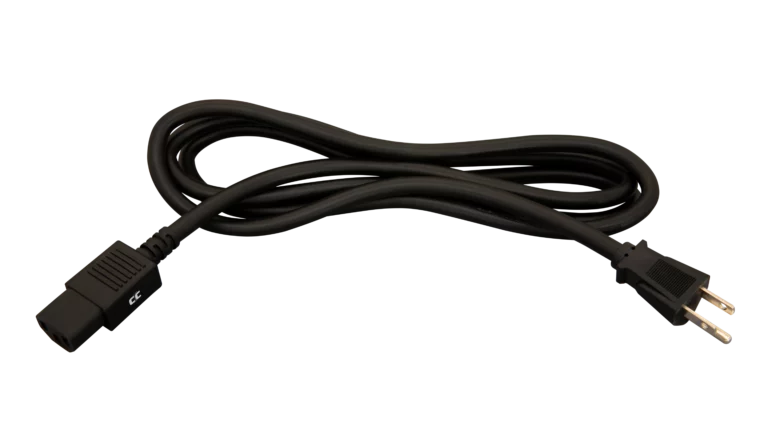

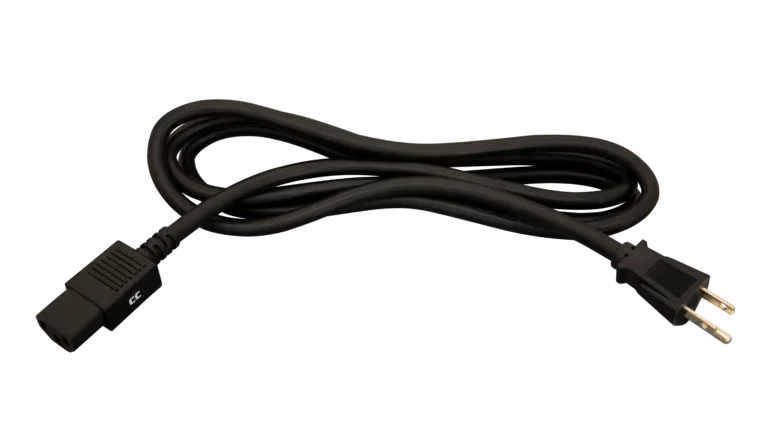

Power cable NOT included.
Log in to check member price and detailed stock information.
Place your order now and we will ship when inventory arrives
Log in to see additional stock details
Current Connected is YOUR Victron product specialist
Victron Smart IP43 12V 50A Battery Charger
The Smart Charger features two outputs, allowing you to charge two battery banks simultaneously. The second output, specifically designed for a starter battery, offers a limited current of approximately 4A and slightly lower voltage. The charger also comes equipped with automatic voltage compensation, which adjusts the output voltage when there is an increase in DC current. This compensation ensures that your batteries receive the proper charge, regardless of cable length or quality.
Charge Algorithm
With its 6-stage charge algorithm, including bulk, absorption, recondition, float, storage, and refresh modes, this charger can cater to various battery types and optimize the charging process based on battery usage. It also allows programming via Bluetooth or the VE.Direct interface. With the mode button, you can select from three preprogrammed algorithms. Additionally, the Victron Smart Charger incorporates a variable absorption time. When shallow discharges occur, the absorption time is kept short. However, after a deep discharge, the charger automatically extends the absorption time.
BatterySafe Mode - Protection Against Excessive Gassing
If you select a high charge current and absorption voltage to expedite charging, the charger will automatically limit the rate of voltage increase once the gassing voltage is reached.
Storage Mode
When your battery remains idle for an extended period, the Storage Mode becomes active. This mode reduces the float voltage to minimize gassing and corrosion of the positive plates. Additionally, the charger periodically raises the voltage back to the absorption level to "equalize" the battery.
Remote On-Off and Programmable Relay
The Victron Smart Charger has two terminals, Remote H and Remote L, where you can connect a remote on-off switch or relay contact. Alternatively, by pulling terminal H high or terminal L low, you can activate the remote on-off function. The charger's programmable relay can also be configured through the VE.Direct interface or a Bluetooth-enabled device to trigger alarms or respond to specific events.
