Pytes V-Box IC 48V 15.3kWh Bundle

SKU: BNDL-V5IC

This 15.3kWH power solution is ready to go when you need it and where you need it. You can also check on it anytime from anywhere via an easy to use phone app. This kit can store your solar power and feed your inverter with up to 300 peak amps on demand, while remaining portable in a well ventilated rolling rack. If you are looking for backup power or want to peak shave, this system fits the role with style.  A set of 4/0 cables is included, which means this kit is ready to connect into practically any inverter.

Charge the system up when the rates are low and avoid the high energy prices during peak hours. You will have power at the ready to feed your inverter both when the grid goes down and in complete off-grid applications. Great in most situations, but an excellent fit for rural homes and cabins in the country.

The V-Box IC is stackable, and includes brackets for securing the top rack to the bottom rack.  If a larger system is required, simply choose two of these bundles for 30.6kWh of capacity.

From: $5,051.00

Pytes 48V 100Ah V5 LiFePO4 Server Rack Battery

The Pytes V5 battery is tested and certified to UL9540 standards and can do closed-loop communication with any Sol-Ark inverter. This server rack battery is a preferred partner for any Sol-Ark inverters, meaning it has been tested thoroughly to ensure that it functions as expected.

Specifications:

  • 48V 100Ah
  • 100Ah capacity
  • 5.12kWh storage
  • RS485, CAN, and WiFi communication
  • 100A Max Continuous Discharge/Charge (180A 15s Discharge)
  • Overcharge and over-discharge protection
  • UL9540 and UL1973 rated
  • Weight: 97 lbs
  • Dimensions (LxWxH): 17.32 x 20.87 x 5.51 inches
$1,450.00 each

3 in stock (Accepting backorders for additional units.)

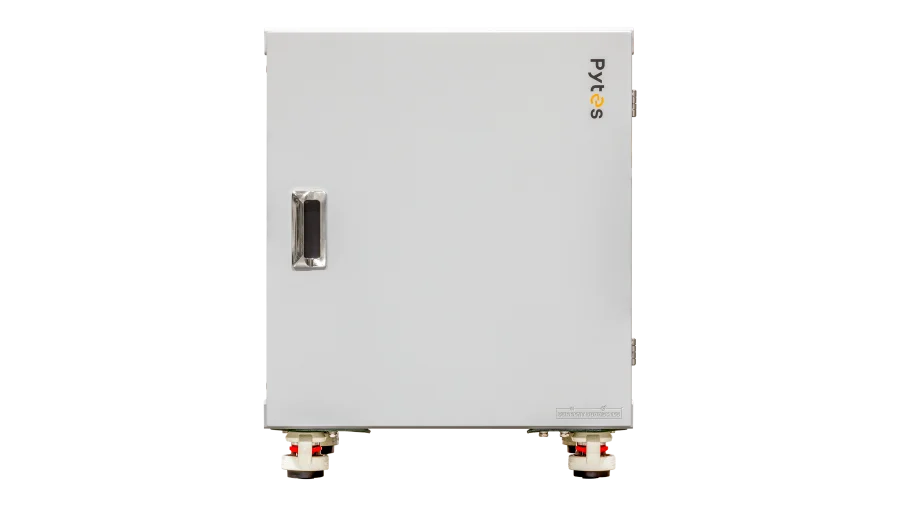

Pytes V-Box-IC Stackable Indoor 3-Slot Battery Rack

The Pytes V-BOX-IC is a racking system to house up to 3 Pytes V5 batteries.

Specifications:

  • IP20 Enclosure Rating
  • Up to 3 Pytes V5 Batteries
  • Made out of galvanized steel
  • Weight: 93lbs
  • Dimensions (LxWxH) 21.0 x 24.3 25.6 inches
$500.00 each

Available on backorder

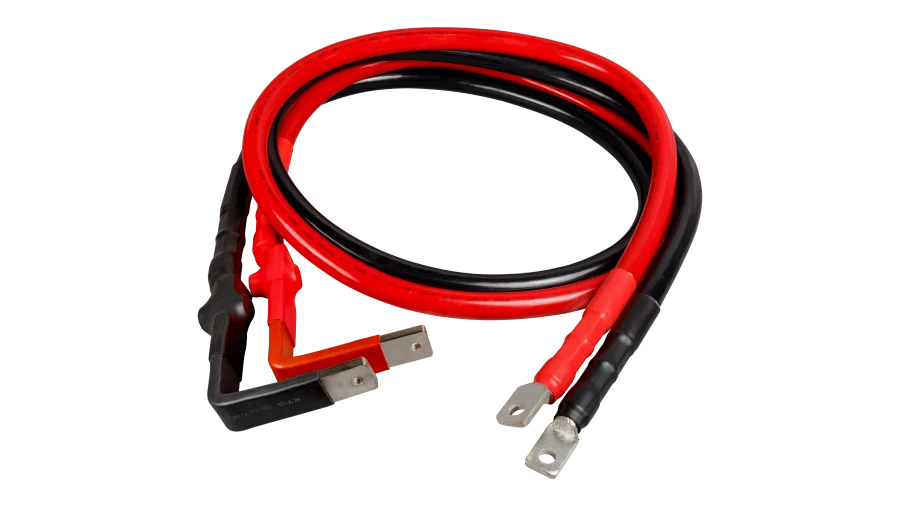

Pytes V-BOX-IC 4/0 AWG Battery to Inverter Cables

  • Battery to Busbar/Inverter power cables
  • 2m with a built-in 90° bend, (4/0 AWG)
  • standard current is 300 A
  • suitable for wiring in V-BOX-IC
$201.00

Available on backorder

Pytes V5 WiFi Stick

The Pytes V5 WiFi Stick allows for remote monitoring and management of a solar system with easy setup. This dongle connects the solar system directly to the WiFi, allowing monitoring and management from anywhere.

5 in stock (Accepting backorders for additional units.)

Pytes V5 Wifi Modem Extension Cable

The Pytes V5 WiFi modem extension cable is installed between the Pytes V5 battery and the WiFi modem.

While the WiFi modem can be plugged directly into the Pytes V5 Battery, it is not always a convenient or ideal location.

As an example, when Pytes V5 batteries are installed in the Pytes V-Box IC, the door is unable to close completely - this extension cable will allow you to relocate the WiFi modem to prevent obstructing the door.

Insufficient stock

Insufficient stock

Available on backorder

Additional information

Pytes 48V 100Ah V5 LiFePO4 Server Rack Battery

Weight 105 lbs
Dimensions 24 × 21 × 10 in
Brand

Pytes

Battery Voltage

48 Volts DC

Capacity (Amp-Hours)

100Ah

Form Factor

19" EIA Server Rack

Pytes V-BOX-IC 4/0 AWG Battery to Inverter Cables

Weight 13 lbs
Dimensions 16 × 13 × 5 in

Pytes V5 Wifi Modem Extension Cable

Weight 1 lbs
