Description
The MNHAWKE’S BAY BB 125 Breaker Box Includes A 125 Amp Breaker For The Battery Side As Well As A 30 Amp Breaker For The Pv Input. It Is Made Of Die Cast Aluminum And Powder Coated To Match The Hawke’s Bay.

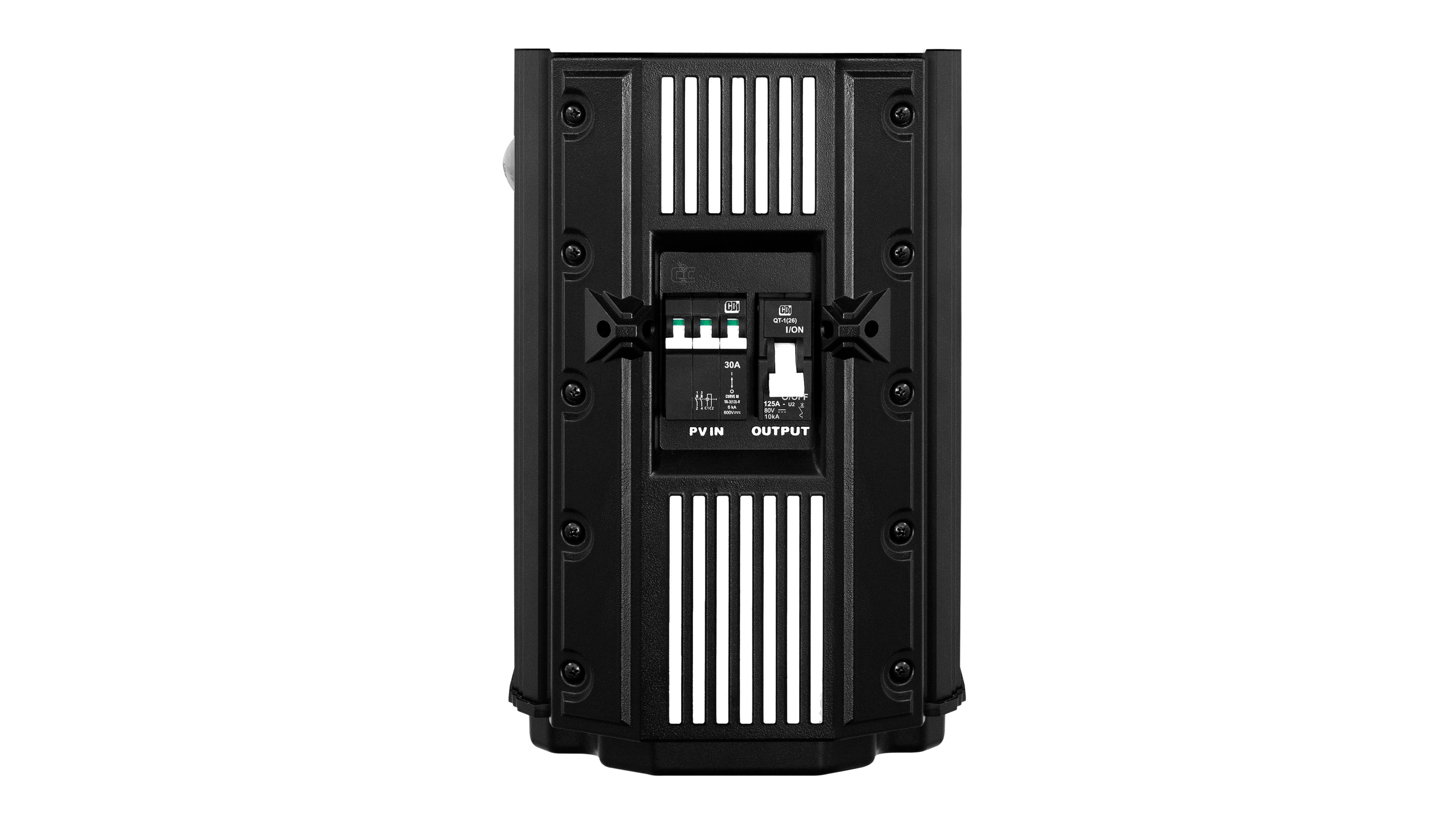

MidNite Solar Hawke’s Bay E-Panel AC/DC Enclosure 125
SKU: MNHAWKE’S BAY BB 125
The MNHawke’s Bay Breaker Box is made for the Hawke’s Bay Charge Controller, for ease of adding breakers on both the PV and battery sides of things.
Specifications:
- Powder Coated Die Cast Aluminum make
- 200A/80VDC Battery Breaker
- 30A/600VDC PV input breaker
- Terminal Temperature Rating 75C
- Input wire size: 12-4 awg
- Output write size: 14-00 awg
- Weight: 12 lbs
- Dimensions(HxWxD): 13.88 x 9.68 x 8 inches
-
