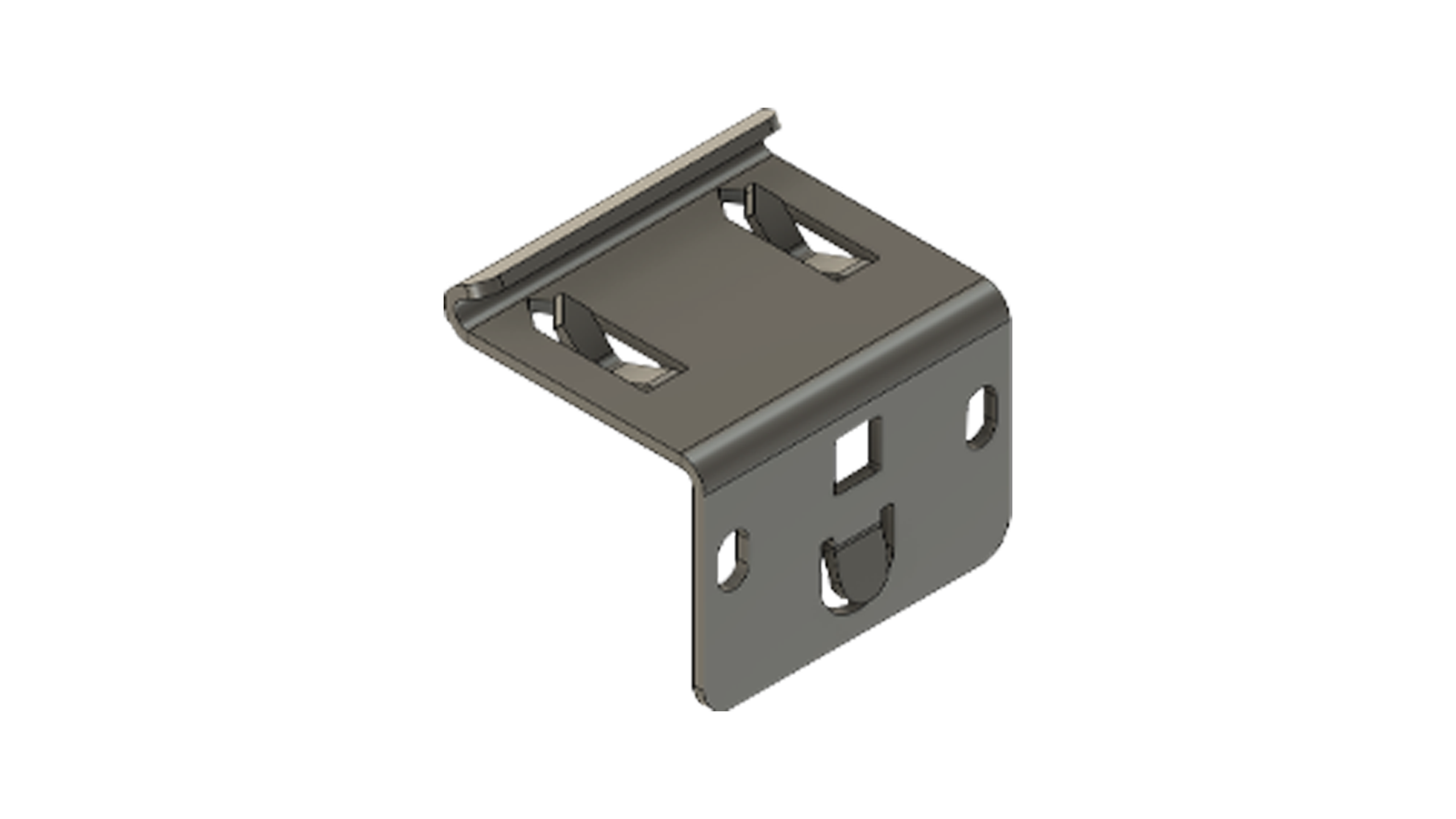

IntegraRack IR-F1 Solar Panel Flange Clamp, Rail-Free Solar Bonding Bracket

Rail-Less Solar Module Mounting & Bonding

When clamping solar panels, the stainless steel spring barbs dig into the bottom flange of the solar module to prevent it from sliding and also bond the modules together. For brackets in between rows, you can mount one IR-F1 Bracket on either side of the mounted bracket using the same carriage bolt to hold them all together.

Quick Fold Bend Tabs

Works in tandem with the Bend Tab Clamps incorporated into the top of our brackets. When quickly folded over with a flathead screwdriver, it clamps the solar module frame directly to the IR-F1 Rail-Less Module Flange Clamp Bonding Bracket, bonding it and locking the solar module firmly in place. For mid-row brackets, you can bend each tab in a different direction, and for end modules the tabs can both be bent the same direction for added clamping tension.

Included Hardware

(1) Stainless Steel Carriage Bolt

(1) Serrated Nut

Mounting Requirements

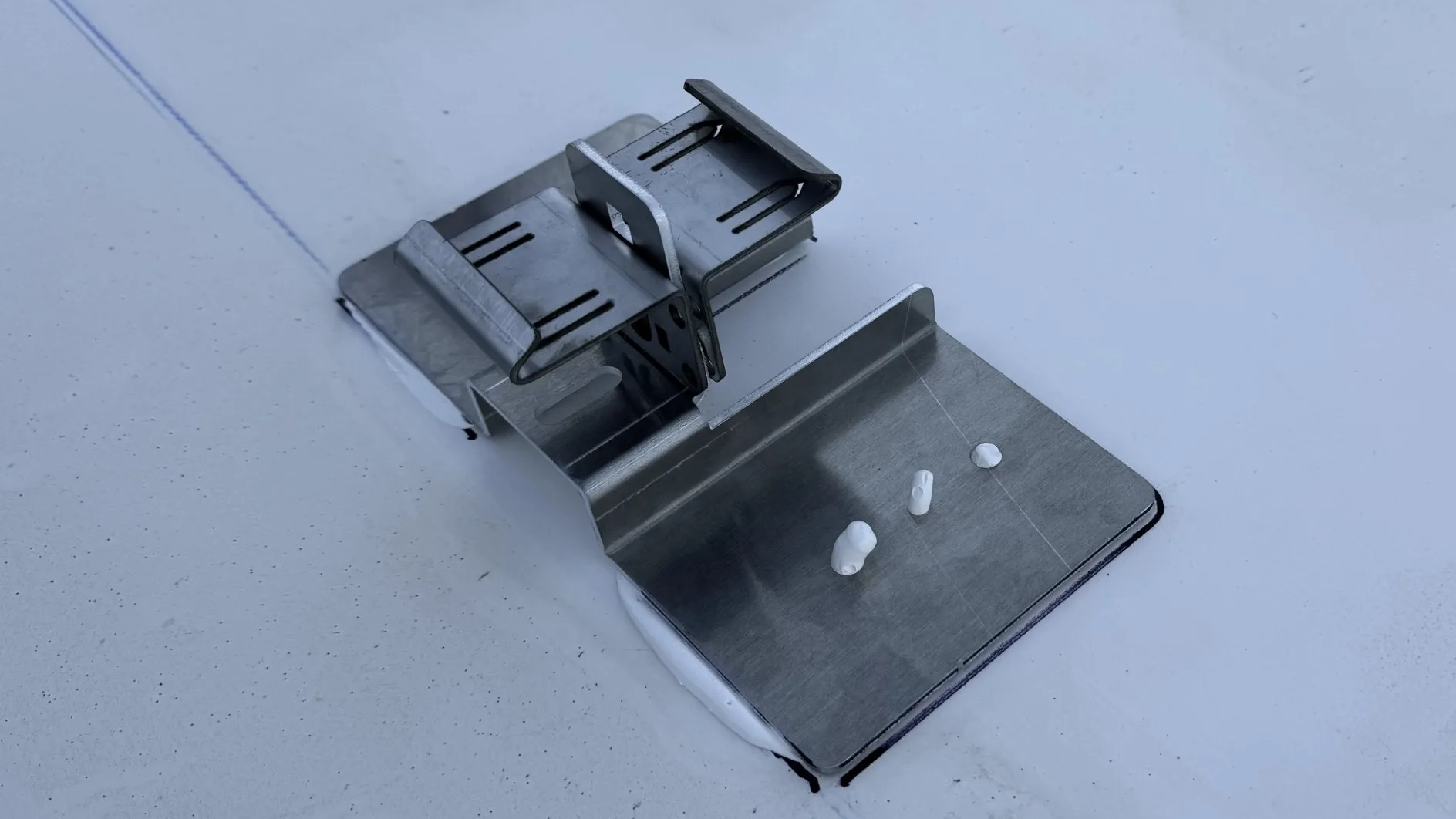

The IR-F1 is compatible with all of our upright brackets with the Quick Fold Bend Tabs. One IR-F1 can be used for end clamping or two can be mounted (one on each side with a single carriage bolt holding them to the upright bracket) for mid clamping.
