Industrial 20kVA 120/240V Off-Grid Power System Kit

Our 20kVA 120/240V Industrial Off-Grid Power System is the perfect solution for those who want to live off the grid without sacrificing any of the comforts of home. With its powerful pair of Victron Quattro 10k Inverter/Chargers, you can run all of your essential appliances and equipment, even large items like well pumps and welders. And with its 40kW of surge capacity, you can even power your home during peak demand periods. Plus, our modular system makes it easy to expand your system as your needs grow. So if you're ready to break free from the grid, our 20kVA 120/240V Industrial Off-Grid Power System is the perfect solution for you.

Details:

20,000VA Continuous output @ 25°C
40,000VA Peak output
Preconfigured for 120/240V Split Phase Output
Built-in generator transfer switch
PowerAssist - Prevent overloads and increase output when using limited generator input
Industry-leading ultra-efficient transformer-based design, 96% efficient.
5 year manufacturer warranty

Too much system for your needs? Check out our 10kVA Residential Power System!

$6,945.64

Configure Your System

Inverter

Required

The inverter / charger is a combination unit that not only can turn the DC power generated by solar and stored in the battery bank, it can also converter power from external sources such as grid or generator to charge the batteries if the solar cannot keep up.

Choose Inverter*

Loading bundle items...

Component subtotal:

$5,706.50

Battery Bank

Optional

We have selected our most popular and performant battery options - this system will need at absolute minimum 30kWh, however most off-grid systems demand significantly more than this minimum and are best sized with a 50-60 kWh battery bank. In this case, bigger is better, since you will have more reserve capacity for periods of bad weather or high demand.

Choose Battery Bank

Loading bundle items...

Qty:

Component subtotal:

$5,599.93

GX System Controller

Required

Choose GX System Controller*

Loading bundle items...

Component subtotal:

$493.00

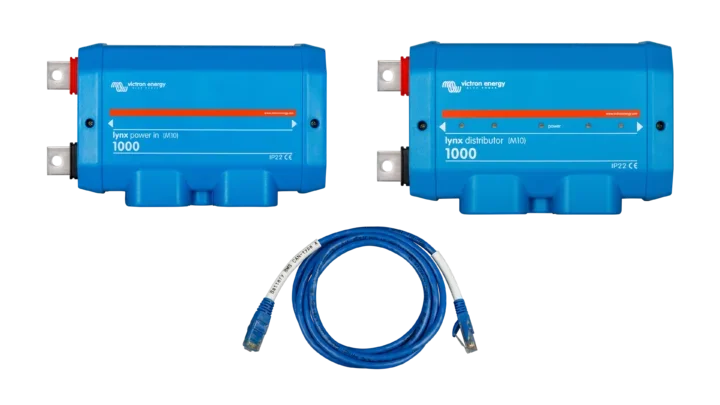

Lynx Power Distribution System

Required

Choose Lynx Power Distribution System*

Loading bundle items...

Component subtotal:

$781.84

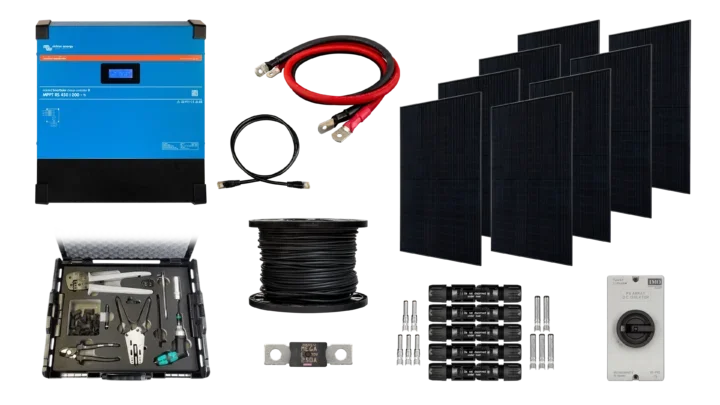

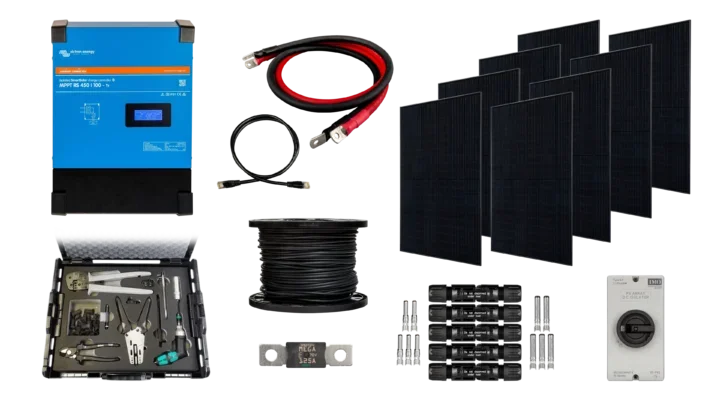

Solar Components

Optional

Solar panels, charge controllers and the wiring to connect them are a carefully calculated pairing. We offer some pre-calculated bundle offerings that have already been properly sized for optimal performance, efficiency, safety, and operation with the rest of this kit. With that said, you can also bring your own panels just ensure to do the appropriate math for calculating your strings and add the appropriate cabling to hook them up. If you need help with this part of your design, feel free to call our technical sales team for assistance.

Choose Solar Components
