MidNite Solar MNEPV-300 7A~50A 300Vdc Din-Rail Mount Polarized Breakers

Name: MidNite Solar MNEPV-300 7A~50A 300Vdc Din-Rail Mount Polarized Breakers
Brand: Midnite Solar
SKU: MNEPV-300
Availability: InStock

SKU: MNEPV-300

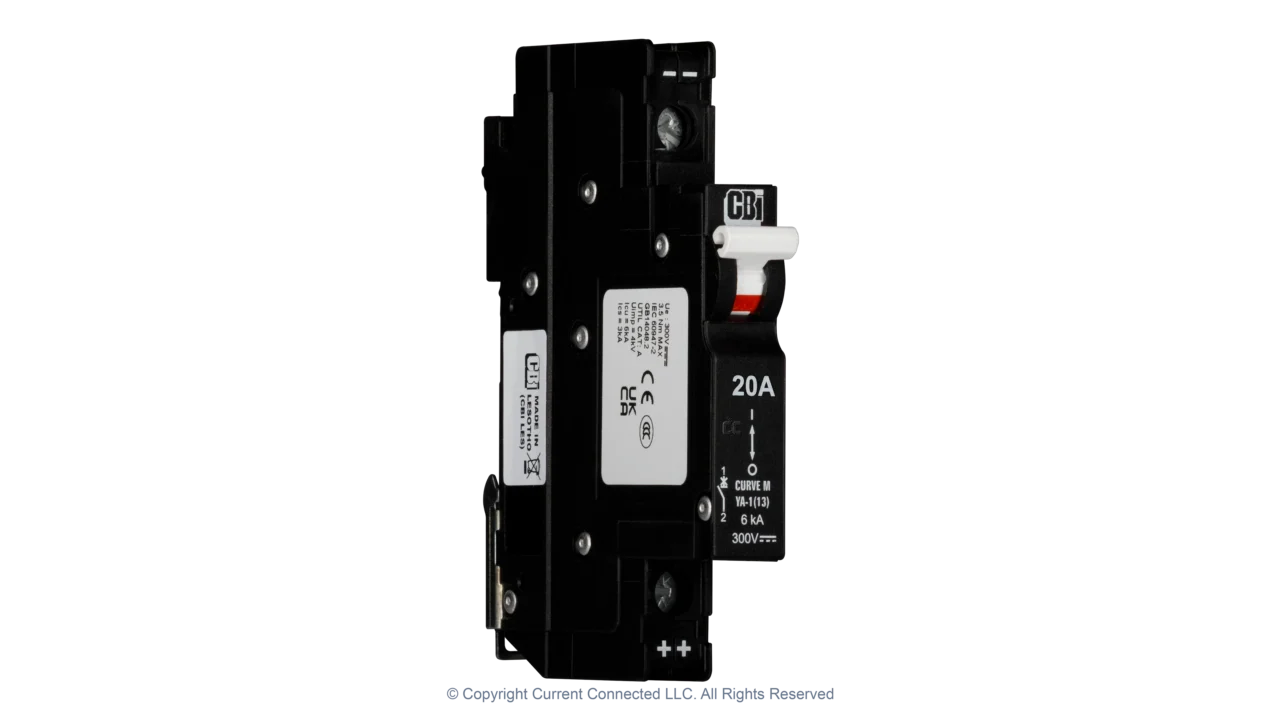

Midnite Solar - MNEPV20-300-1PP - MidNite Solar MNEPV 300Vdc Din-Rail Mount Polarized Breakers - 20A ISO

Midnite Solar - MNEPV20-300-1PP - MidNite Solar MNEPV 300Vdc Din-Rail Mount Polarized Breakers 20A - Side View

Midnite Solar - MNEPV20-300-1PP - MidNite Solar MNEPV 300Vdc Din-Rail Mount Polarized Breakers 20A - Top View

Midnite Solar - MNEPV20-300-1PP - MidNite Solar MNEPV 300Vdc Din-Rail Mount Polarized Breakers 20A - Bottom

Midnite Solar - MNEPV20-300-1PP - MidNite Solar MNEPV 300Vdc Din-Rail Mount Polarized Breakers 20A - Back View

Spec Sheet

These MidNite Solar Polarized Breakers are evaluated by ETL to 300VDC and are listed for the US and Canada.

Specifications:

Single pole breaker
0.5in wide
Type 1 environmental rating (Indoor)
300VDC din rail mount breaker
10,000 AIC
Wire size: 14 to 6 AWG
Warranty 5 Years
Weight: 1.5lb

Amperage

Clear

Description

The MidNite Polarized MNEPV Breakers are rated to break repeatedly with no damage when properly sized for a system. This breaker is rated for 300VDC and 10,000 AIC. The torque value for these breakers is 20 In-Lbs.
