Name: T-Branch Connectors (2-to-1, 3-to-1, 4-to-1)
SKU: 3924
Availability: InStock

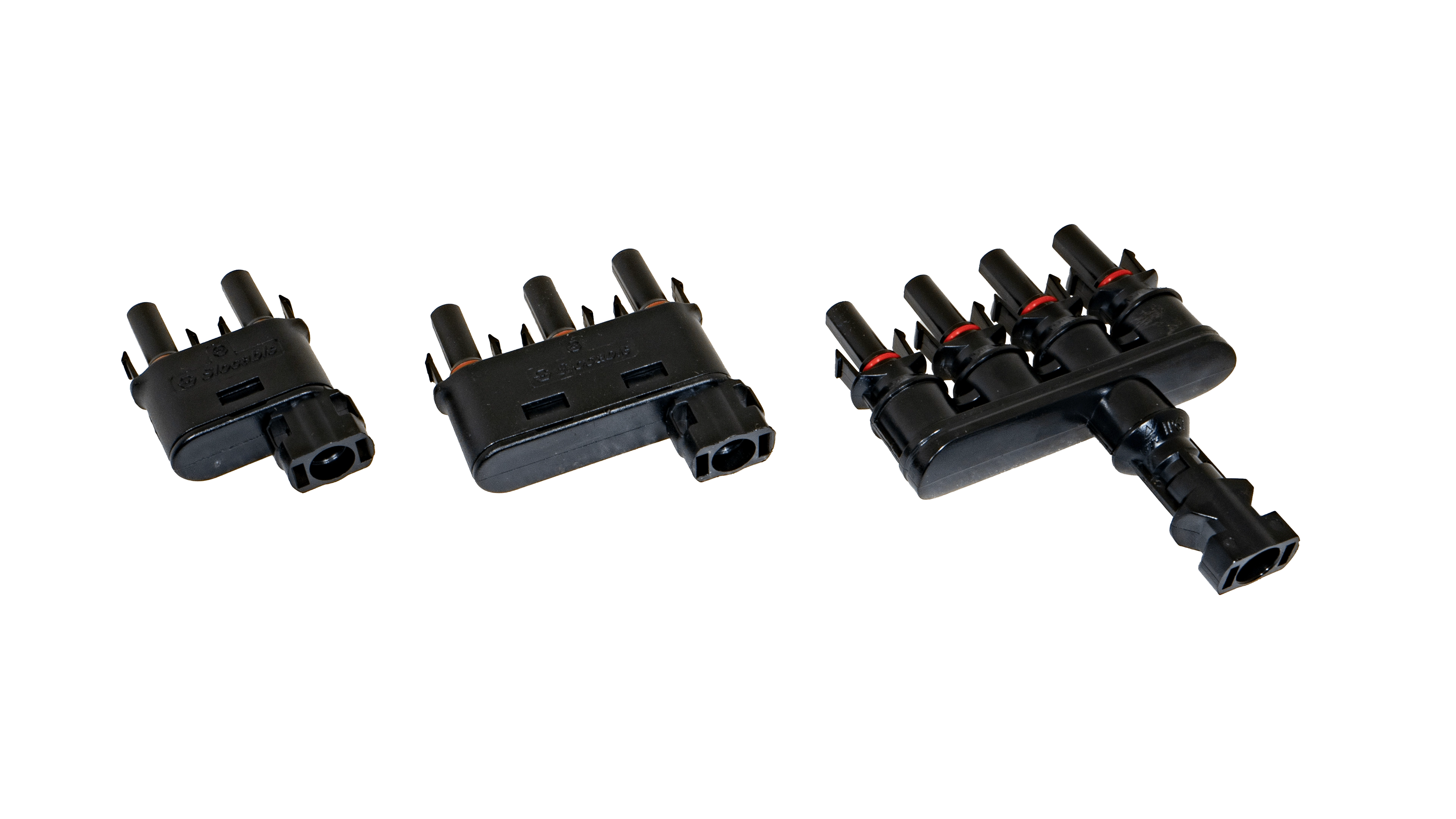

T-Branch Connectors (2-to-1, 3-to-1, 4-to-1)

SKU: Please select an option...

These T-Branch connectors are good for any solar systems that need parallel wire connections. Being offered in 3 different connection types (2-to-1, 3-to-1, or 4-to-1), these connectors are good for most solar systems.

Features:

Rated current: 30A
Rated voltage: 1000V, 600V (UL)
Ambient temperature range: -40°C to +90°C
Pin dimension: 4mm
Flame class: UL94-V0
IP67 rated for protection against dust and water ingress

Model

Clear

Description

These T-Branch Connectors are great for an easy setup for a system that needs parallel panels. They come in different options, 2-to-1, 3-to-1, or 4-to-1, allowing for versatile use. With an IP67 rating, these connectors are protected against dust and water, allowing for any outdoor installation. It is also UL94-Vo flame class rated, allowing it to survive higher temperatures. These connectors have a maximum current threshold of 30A and a 4mm pin dimension. They are also rated for a maximum of 1000V (600V UL) and allowed to work with any 10 AWG wire.
