Victron Blue Smart IP22 12V Battery Charger

SKU: Please select an option...

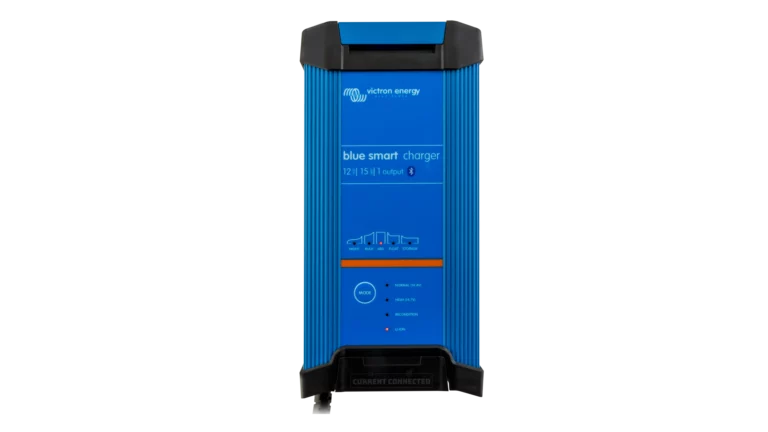

Victron Blue Smart IP22 Charger
ManualSpec Sheet

The Victron Blue Smart IP22 Waterproof Charger has an input range of 100-130VDC. This battery charger can adjust charging parameters, allowing for a more accurate charging ability. Along with its waterproof rating, it is good for mobile installations that might get damp, such as RVs, boats, and vans.

Features:

  • Charge Current: 15 / 20 / 30 (Only with 30A version)
  • Professional battery charger with built-in Bluetooth
  • 6-stage adaptive charging
  • Waterproof (IP22)
  • Suitable for workshop devices and motor vehicles
  • Weight: 3 lbs
  • Dimensions (HxWxD): 9.7 x 4.3 x 2.6 inches

-

Description

The Victron Blue Smart IP22 Waterproof charger is good for any LiFePO4 installation that needs an adjustable charging source. With the ability to set the charging settings, it is perfect for waking up deeply-discharged 12V batteries. The Victron Blue Smart IP22 charger is good for any mobile applications such as boats, vans, and RVs.

This smart charger comes with built-in Bluetooth capabilities, allowing you to monitor the battery status from any mobile device. With the Victron Connect app, easily adjust the settings of the charger.

Features:

  • Intelligent charging for deeply-discharged batteries
  • Compatible with LiFePO4 batteries with internal BMS units
  • VictronConnect app for status monitoring and configuration
  • Seamless integration with smartphone, tablet, or laptop
  • User-friendly interface for easy settings adjustment

Recommended Accessories:

Additional information

Weight 3.25 lbs
Dimensions 10.9 × 6.49 × 2.8 in

Why Choose Victron?

Victron Energy is a globally recognized leader in technical innovation, renowned for producing high-quality, reliable products crafted with meticulous attention and precision, ensuring superior performance and durability.

Established in the Netherlands in 1975, Victron Energy manufactures dependable off-grid battery inverter chargers and affordable solar controllers. In the automotive, RV, and boating market, they stand out as one of the top-quality manufacturers through their commitment to continuous improvement and development of their products. Victron frequently introduces innovative products and enhanced hardware/software through free updates, always staying on the forefront of independent energy systems.

With over 45 years of expertise in designing robust off-grid systems, Victron excels in delivering solutions that prioritize reliability. Their commitment is reinforced by cutting-edge software, user-friendly monitoring apps, a network of skilled professionals, and widespread repair centers, ensuring unparalleled support for their products. Victron equipment surpasses performance expectations and boasts an extended life cycle that goes beyond industry standards. They back their products with a 5-year warranty and efficient repair policies, providing you with the assurance and protection necessary for your investments.

Choose Victron Energy for reliable, innovative, and long-term power solutions. Experience the difference that their industry-leading products and expertise can make for your energy needs.

LiFePO4 Settings

Victron’s Li-Ion profile is NOT sufficient for non-Victron LiFePO4 batteries.  Enter configuration and turn on “ADVANCED” switch, then select “Custom” charge preset.  Then click “Advanced Battery Settings”.

The battery preset should be set to “User Defined”.  Turn on “Expert Mode” switch.

Charge Voltage Settings:
Absorption Voltage: 14.6v
Float Voltage: 13.8v
Storage Voltage: 13.6v
Recondition Voltage: Disabled
BatterySafe: Disabled

Voltage Compensation:
Temperature Compensation: Disabled

Bulk:
Bulk Time Limit: 24 Hours
Re-bulk Current: Enabled, set to full output current of charger, typically 25A

Absorption:
Absorption Duration: Fixed
Absorption Time: 1 Hr
Repeated Absorption: Every 7 days

Recondition:
Recondition Stop Mode: Fixed time
Recondition Duration: 15M (This is the minimum allowed setting.  It is already disabled in charge voltage settings, but set to this as a safety precaution)
