EG4 Indoor WallMount 48v 280Ah 14.3kWh LiFePO4

SKU: 1511092

Specifications:

  • Voltage: 48V (Nominal: 51.2V, Float: 54V)
  • Continuous Charge/Discharge Current: 200A (Max)
  • Capacity: 14.3kWh
  • BMS: 200A
  • Weight: 282 lbs. / 128 kg
  • Battery Type: LiFePO4 (Lithium Iron Phosphate, Grade A)
  • UL Listed: UL9540, UL9540A, UL1973
  • CEC Listed

EG4 WallMount Batteries are a hot-selling item with limited availability.

IN STOCK!  SHIPS WITHIN 1-2 BUSINESS DAYS

133 in stock

$3,299.00

-

Description

  • ON-BOARD LCD TOUCH SCREEN – Easy to see BMS monitoring, and selectable closed-loop communications with EG4, Schneider, Sol-Ark, Victron, Growatt, Megarevo, Luxpower, and Deye inverters.
  • DUAL ON-BOARD FIRE ARRESTORS – Offer fail-safe protection against thermal runaway.
  • INTEGRATED SELF-HEATING FEATURE – Heats the battery when the ambient temperature is low.

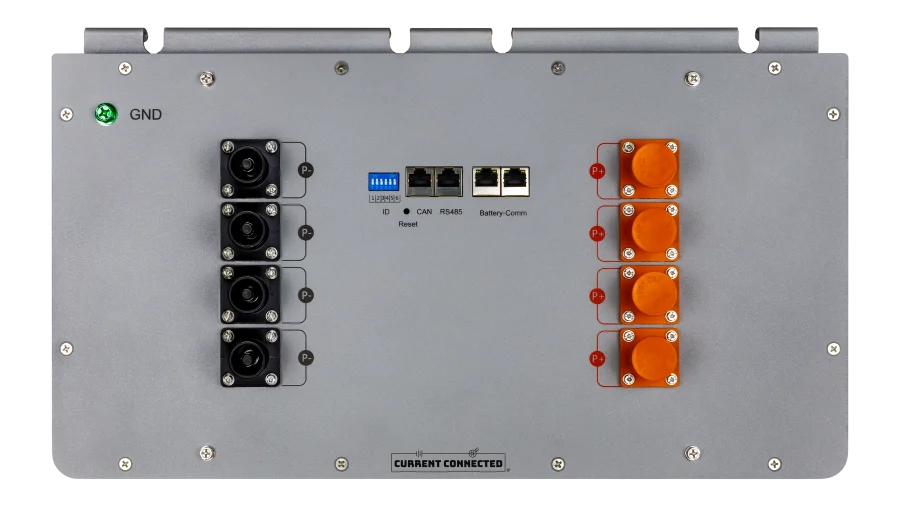

  • INTEGRATED BUSBARS – The battery design comes manufactured with 600A internal busbars with multiple terminals (4
    positive & 4 negative) eliminating the need for external busbars when paralleling batteries and/or multiple inverters.
  • INNOVATIVE EMERGENCY STOP FUNCTION – The optional ESS disconnect can shut down all batteries and inverters (if equipped with rapid shutdown capability) with the press of a button.
  • THE PERFECT PARTNER TO EG4 INVERTERS – The optional conduit box mates up directly to the connection ports of EG4
    inverters allowing a sleek and efficient installation. For other inverters or stand-alone battery installation, the conduit box plugs should be installed.

Recommended Accessories:

Additional information

Battery Voltage

48 Volts DC

Brand

EG4 Electronics

Form Factor

Standalone Wall Mount

Capacity (Amp-Hours)

280Ah

1 review for EG4 Indoor WallMount 48v 280Ah 14.3kWh LiFePO4

  1. jim

    Recently purchased this battery. Only problem I have with this battery are the legs/feet. They are totally crap. M8 all thread legs bend if you look at them wrong, with plastic feet. The legs are not adjustable. The M8 all thread can only thread on your the battery with 2 threads. The feet are nice & shiny. Besides that love the battery. Batteries are mounted in my garage. Replaced the legs/feet with a perfectly cut pressure treated 2×12 that does not extend outside the battery & not under the front panel. Standing 4′ away you can not see it.

Add a review

Please login to post questions

Question:

Hello, can you tell me if the 36.4" is the height of the battery including the adjustable feet?

krazyclimber
28-May-2024

Answer:

Yes, this is including the feet in the default position.

Question:

Do these batteries come with cables? Thanks

ScottTempleWell
04-Jun-2024

Answer:

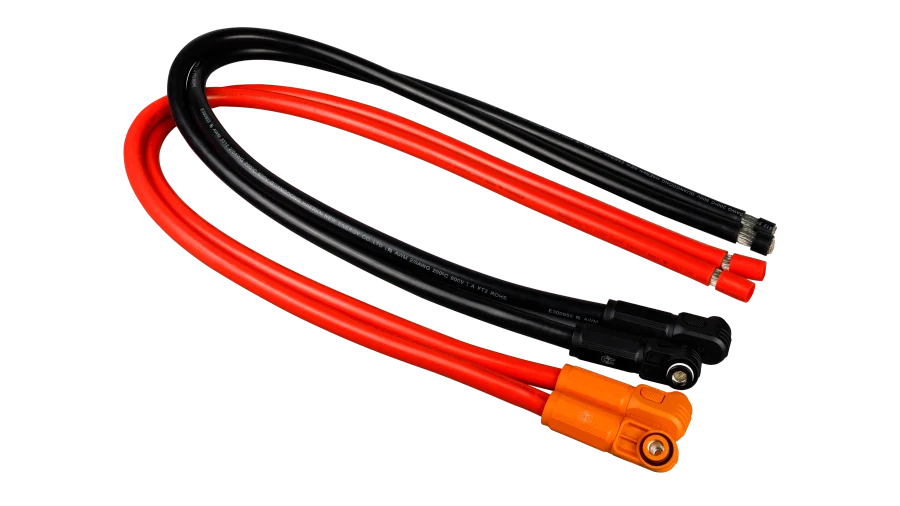

Yes, it comes with red and black cables to connect to an inverter or external bus bar.

Question:

Am I able to lay this battery flat on back in a rack for ventilation? My intension is to have 2 of these laying flat suspended about 2 inches apart

mrtango207
05-Jun-2024

Answer:

No, as per the manual, this battery must be mounted upright in an installation.

Question:

Is there a limit to how many of these can be put in parallel?

AnotherOffGrid
18-Jun-2024

Answer:

There is not a limit to how many can be paralleled, but after 5 you would need to use an external bus bar for connections.
