Victron Energy MultiPlus-II 24V 5kVA 120V AC Output Inverter, 120A Battery Charger, 95A Passthrough Mobile Inverter

SKU: PMP242505110
Victron Energy 48V MultiPlus-II 5kVA 120V Inverter 70A Charger. This is a Internal view display of the inverter by Victron Energy with no background.
Spec SheetManualWarranty

This inverter charger provides 4kW continuous power output and peaks at 9kW. Victron’s MultiPlus-II 5kVA 120V inverter charger can power pumps, motors, and other high surge items in an alternative energy system.

Specifications:

  • Continuous output: 4kW
  • Max. surge output: 9kW
  • AC input range: 90-140V
  • DC input range: 19-33V
  • AC output: 120V
  • Output frequency: 60Hz
  • Weight: 64lbs
  • Dimensions (H×W×D): 24.7×13.8×5.9in
  • One AC input and two AC outputs
  • Split-phase and three-phase capability
  • PowerControl and PowerAssist option
  • Configurable with remote monitoring from any smart device

$1,620.95

to check member price and detailed stock information.

2 units in stock ready to ship
We can get an additional 329 units if needed
Log in to see additional stock details

Description

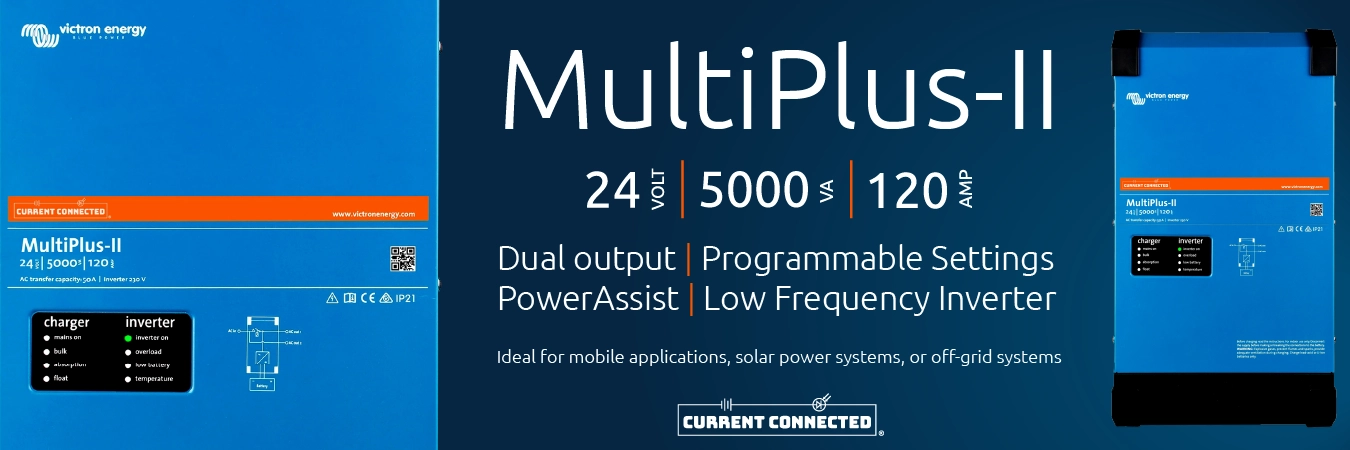

Victron Energy MultiPlus-II 24V 5kVA 120V AC Output Inverter descriptive image

The 24V MultiPlus-II 5kVA 120V Inverter Charger is Victron’s low frequency solution for a mobile friendly inverter with dual AC outputs, extraordinary customization options, and PowerAssist.

PowerAssist constantly monitors incoming power, outgoing power, and battery health. If incoming power is greater than outgoing power, PowerAssist automatically diverts incoming power to charge the batteries. If outgoing power is greater than incoming power, PowerAssist automatically uses up to 4kW to meet the outgoing AC needs.

PowerAssist is included in VictronConnect, Victron’s inverter management software with many configuration settings. It can turn off the battery when the battery voltage drops below a set level, limit the power draw from AC sources, and supplement AC power with battery power for sudden, large power demands, such as a hair dryer, air conditioner, or microwave.

Read more about the MultiPlus-II 5kVA here!

Recommended Accessories:

Additional information

Weight 74 lbs
Dimensions 28 × 17 × 10 in
Battery Voltage

24 Volts DC
Brand

Victron
Inverter Type

Inverter-Charger
